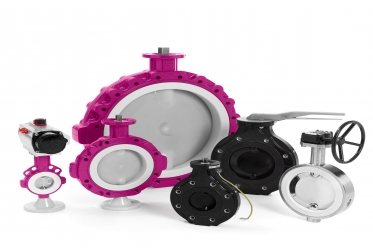

Butterfly Valves

• Used for On/Off and control operation
• Size range from DN40 up to DN300
• Pressure rating: Maximum working pressure: up to 16 bar at 20°C (water) - DN50 and above up to 10 bar at 20°C (water)
• Body material GR-PP; UV resistant
• Full flanged body with oval holes to fit various flanging standards. Supplied with hole inserts for bolt hole centralising (up to DN 200; DN 250 & 300 are drilled according to the flange drilling required)
• Lever operated versions are fitted with a handle locking device (with 10 ratchet positions at 10º intervals for regulating flow)
• Option to install gearbox or actuator to the valve upper flange with standard ISO drillings
• Optional fully lugged version with threaded 316 Stainless steel inserts to BS-EN 1092 PN10 (Formally BS4504) or ANSI 150
• Maintenance can be carried out while the valve body is installed in line

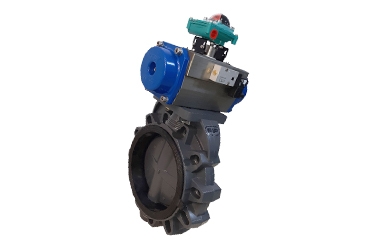

      Also available as electrically or pneumatically actuated

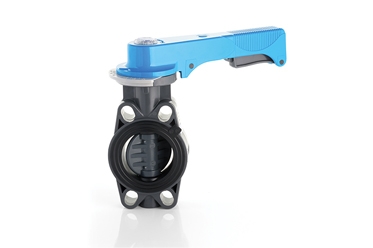

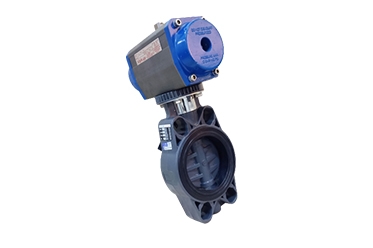

PVC HP Butterfly Valve 4 Holes CEPEX:

• Ideally suited for flow control using minimal piping space.
• Minimal pressure drop.
• Low maintenance.
• Excellent flow characteristics.
• Good mechanical strength.
• One-piece PP – GF body. Rubber seal available in food-grade EPDM.
• Disc available in different materials.

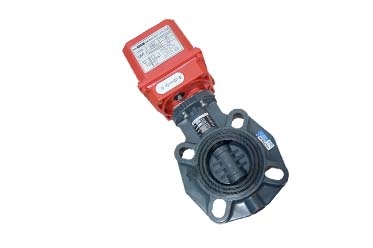

Electrical Actuators :
The compact PSQ quarter-turn actuators of PS Automation are available from 50 Nm up to 2800 Nm torque. Different stroke options are available e.g. 90°, 180° or others. They are even available with continuous rotation upon request

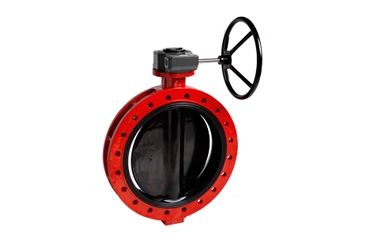

The FG(w) double flanged type valve is a one piece body design with flanges to suit all standards (DIN, ANSI, BS, etc.). It also provides dead-end services with down stream piping removed.

Its robust design makes it suitable for many applications. It is used in water treatment plants, pump stations, filtration systems, shipbuilding industry and more.

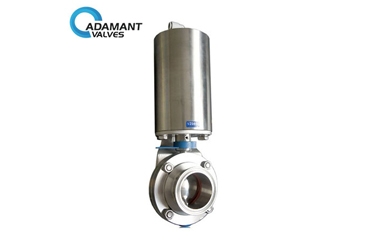

AV-1PW series is pneumatic type sanitary butterfly valve with butt-welded / butt-welded ends, which is widely used in process piping systems for isolation and control. AV-1PW butterfly valve operates automatically.

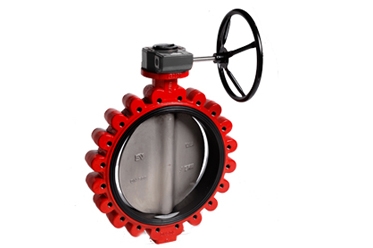

The LUG(w) type valve:

It is designed for industrial applications, and replaces double flanged valves, specially in small diameters.
It offers considerable advantages where dead-end services are needed, such as pump outlets, tanks and ship sides among many. It gives an effective solution to several needs in shipbuilding, water treatment plants, heating, cooling, vacuum systems, gas and many others.

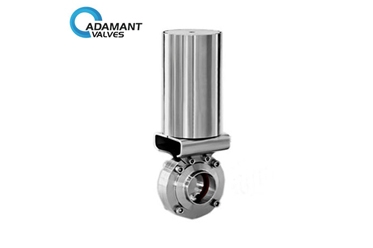

AV-1PC series is sanitary pneumatic butterfly valve actuator with tri-clamp / tri-clamp ends, which is widely used in process piping systems for isolation and control. AV-1PC butterfly valve operates automatically

The FE is a butterfly valve for shutting off or regulating flow, specifically designed for water applications and equipped with a customisable Labelling System.

AV-1MW series is a manual type sanitary butterfly valve with butt-welded / butt- welded ends, which is widely used in process piping systems for isolation and control. AV-1MW butterfly valve operates manually

FL(w) butterfly valve is the answer to the market request, in accordance with ISO PN 10/16 standard. Supported by modern technology and design facilities, we offer a high quality valve at a very competitive price level.
The FL(w) type butterfly valve is specially designed for fire-safe services, shipbuilding industry, water supplies, water treatment, general services, etc.
The body is clearly different due to its extended neck that allow pipe isolation and free access to the actuator

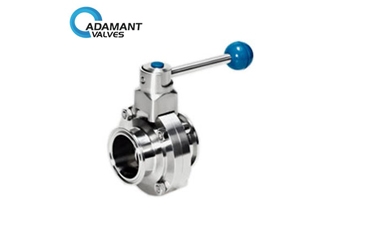

AV-1MC series is a manual type sanitary butterfly valve with tri-clamp / tri-clamp ends, which is widely used in process piping systems for isolation and control. AV-1MC butterfly valve operates manually.

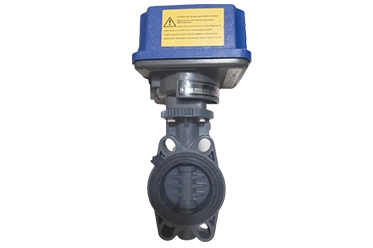

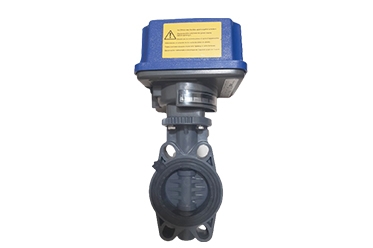

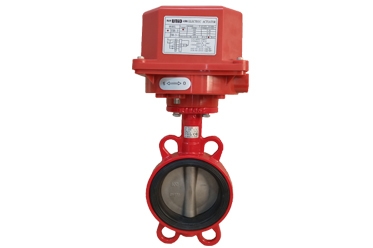

Electrical Actuator : UMD series __  It can control the opening of valve by voltage, current, or temperature.

Power supply：

Single-phase power AC110V~120V/AC200V~250V 50/60Hz DC24V

3-phase power AC220V/AC380V/AC440V

The voltage can be customized.

Input Signal (Standard)：4~20mA   _  2~10VDC

Output Signal：4~20mA

PVC Vlaves :

• Used for On/Off and control operation
• Size range from DN40 up to DN300
• Pressure rating: Maximum working pressure: up to 16 bar at 20°C (water) - DN50 and above up to 10 bar at 20°C (water)
• Body material GR-PP; UV resistant
• Full flanged body with oval holes to fit various flanging standards. Supplied with hole inserts for bolt hole centralising (up to DN 200; DN 250 & 300 are drilled according to the flange drilling required)
• Lever operated versions are fitted with a handle locking device (with 10 ratchet positions at 10º intervals for regulating flow)
• Option to install gearbox or actuator to the valve upper flange with standard ISO drillings
• Optional fully lugged version with threaded 316 Stainless steel inserts to BS-EN 1092 PN10 (Formally BS4504) or ANSI 150
• Maintenance can be carried out while the valve body is installed in line

      Also available as electrically or pneumatically actuated
