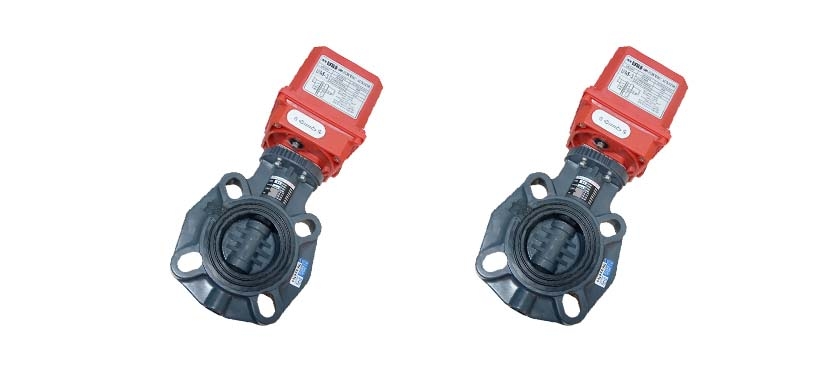

PVC butterfly valve & Unid Electrical actuator

code :

Electrical Actuator : UMD series __  It can control the opening of valve by voltage, current, or temperature.

Power supply:

Single-phase power AC110V~120V/AC200V~250V 50/60Hz DC24V

3-phase power AC220V/AC380V/AC440V

The voltage can be customized.

Input Signal (Standard):4~20mA   _  2~10VDC

Output Signal:4~20mA


PVC Vlaves :

  • Used for On/Off and control operation
  • Size range from DN40 up to DN300
  • Pressure rating: Maximum working pressure: up to 16 bar at 20°C (water) - DN50 and above up to 10 bar at 20°C (water)
  • Body material GR-PP; UV resistant
  • Full flanged body with oval holes to fit various flanging standards. Supplied with hole inserts for bolt hole centralising (up to DN 200; DN 250 & 300 are drilled according to the flange drilling required)
  • Lever operated versions are fitted with a handle locking device (with 10 ratchet positions at 10º intervals for regulating flow)
  • Option to install gearbox or actuator to the valve upper flange with standard ISO drillings
  • Optional fully lugged version with threaded 316 Stainless steel inserts to BS-EN 1092 PN10 (Formally BS4504) or ANSI 150
  • Maintenance can be carried out while the valve body is installed in line


      Also available as electrically or pneumatically actuated
