Flanged type


code :

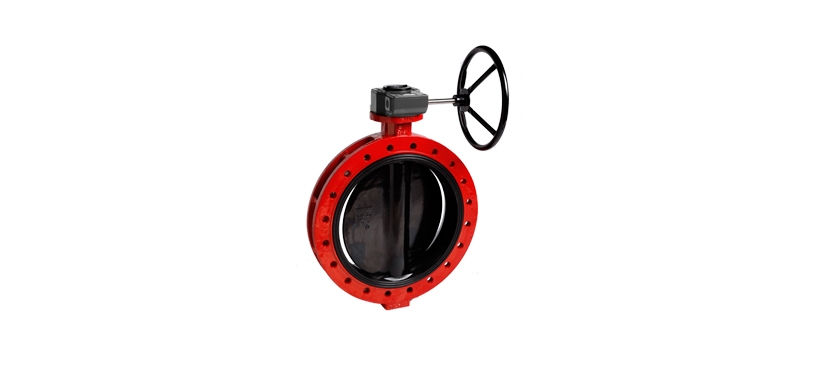

The FG(w) double flanged type valve is a one piece body design with flanges to suit all standards (DIN, ANSI, BS, etc.). It also provides dead-end services with down stream piping removed.

Its robust design makes it suitable for many applications. It is used in water treatment plants, pump stations, filtration systems, shipbuilding industry and more.




Facebook Twitter Google Digg Reddit LinkedIn Pinterest StumbleUpon



  • Details
  • Specifications
  • Video

Features
• Body type
• Production range
• Standard design
• Face to face
• Standard maximum working pressure
• Working temperature
• Hydraulic tests
• Top flange
• Drilling norm
• FLANGED
Field of use
Filtration / Water treatment / Water distribution / Cooling systems / Shipbuilding
Remarks
• Pressure equipment directive PED 97/23/EC

• Machinery directive 2006/42/EC

• ATEX (II 2GD) 94/9/EC optional

• Vulcanized optional
