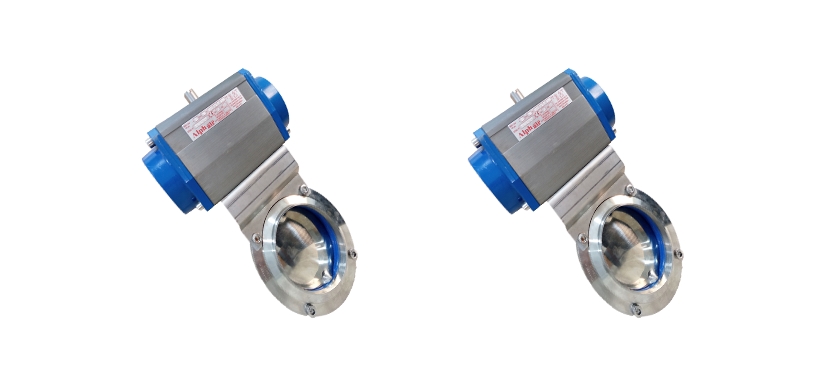

Automatic Sanitary Butt-weld Butterfly Valve with actuator


code :

AV-1PW series is pneumatic type sanitary butterfly valve with butt-welded / butt-welded ends, which is widely used in process piping systems for isolation and control. AV-1PW butterfly valve operates automatically.




Facebook Twitter Google Digg Reddit LinkedIn Pinterest StumbleUpon

Download

Catalogue 1


  • Details
  • Specifications
  • Video

Reference No. : AV-1PW
Sizes available: 1/2" to 12" (1/2", 3/4", 1”, 1 1/2", 2", 2 1/2", 3", 4", 5", 6", 8", 10", 12")
DN15 - DN300 (DN15, DN20, DN25, DN40, DN50, DN65, DN80, DN100, DN125, DN150, DN200, DN250, DN300)
Material: Valve body and disc material can be AISI 304 or AISI 316L, 304L and 316 materials are available upon request.
Max. working pressure: 145psi (10bar) for DN25/1"-DN100/4"; 116psi (8bar) for DN125/5"-DN150/6"; 73psi (5bar) for DN200/8"-DN300/12".
Operation: SS304 vertical actuator, NC (normally close) / NO (normally open) / AA (air to air) type for choose from.
Air supply pressure: 70-116psi (5-8bar)
Temperature range: 14 ~ 248°F (-10 ~ 120°C) with EPDM seat, -58 ~ 356°F (-50 ~ +180°C) with VMQ (Silicone) seat.
End connections: butt-welded / butt-welded.
Surface treatment: Ra 16 ~ 32µin (0.4 ~ 0.8µm), Ra 32µin is the default.
