Hafner offers a wide range of tube for pneumatic applications made from PU, PA and PTFE.

x

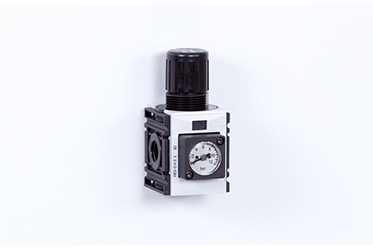

Pressure Regulator(Mini)
Size:1/2" & 1/4 "
Flow: 4500  L/min
Input pressure: 0...16 bar
Outlet pressure: 0,5...8 bar
Filter fineness :  5 micron
Manufacture:Hafner-Germany
x

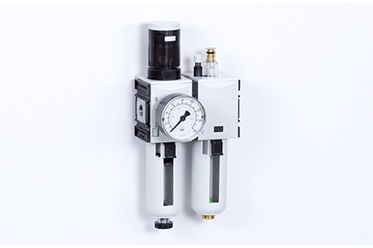

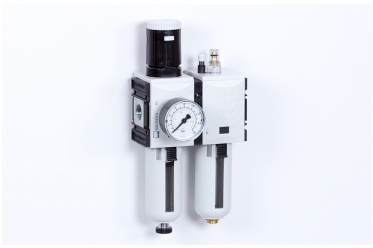

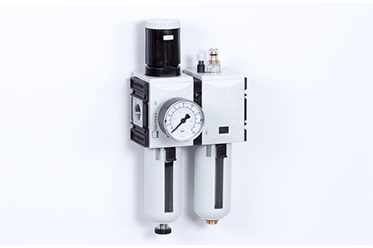

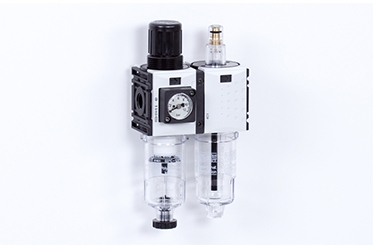

FRL-unit G1/4" - G1"| Filter-Regulator - Lubricator | semiautomatic drain | 8 bar - 5 micron | Futura line

x

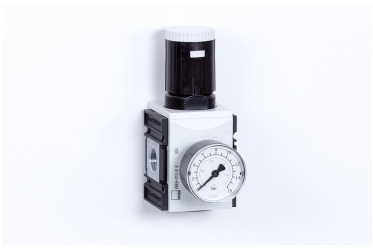

Pressure Regulator (High Flow)
Size:1/4"
Flow:2200 L/min
Input pressure: 0...16 bar
Outlet pressure: 0,5...8 bar
Manufacture:Hafner-Germany
x

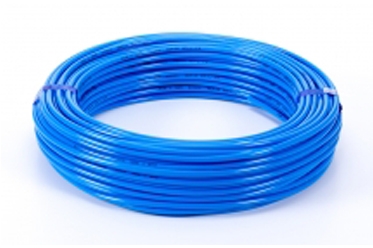

Tube
Hafner offers a wide range of tube for pneumatic applications made from PU, PA and PTFE.


x

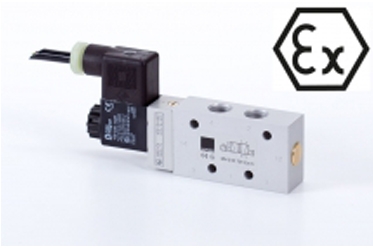

Explosionsgeschützte Magnetventile | monostabil | Luftfederrückstellung | mit Handhilfsbetätigung | ATEX

x
Port size G 1/8"
Air flow 650 l/min
Operating pressure 2...10 bar
Funktion Single solenoid
Power consumption 3 W / 5 VA
x

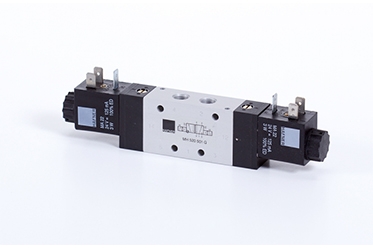

MNH 520 701
NAMUR TYPE
Size: 5/2*1/4" - Double  coil
Power supply: 24vdc,24,110,220 vac
x
Port size G 1/4"
Air flow 1250 l/min
Operating pressure 1...10 bar
Actuating pressure 2,5...10 bar
Size of actuation port G 1/8"
Function Double pilot
x
Port size G 1/4"
Air flow 1250 l/min
Operating pressure 2...10 bar
Funktion Single solenoid | NO
Power consumption 3 W / 5 VA
x

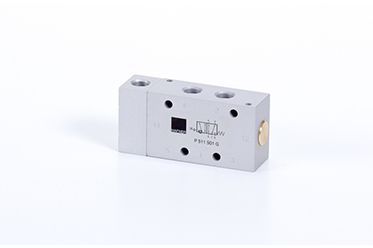

Port size G 1/8"
Air flow 280 l/min
Operating pressure -0,9...10 bar
Actuating force 10 N
Function spring return
Port size / port position ports on the side
x

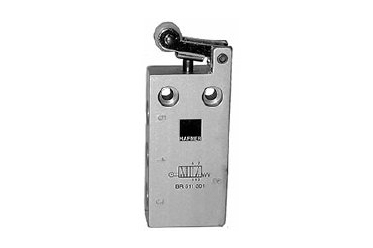

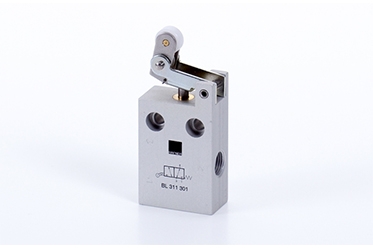

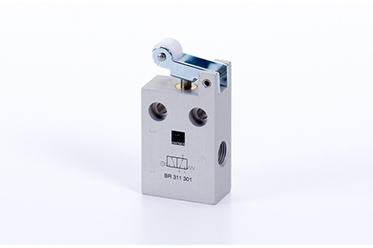

Roller lever valve | monostable | NC | mechanical spring return | push-in fitting

x
Port size G 1/4"
Air flow 1250 l/min
Operating pressure 2...10 bar
Funktion Single solenoid
Power consumption 3 W / 5 VA
x

Valves for Panel Mounting
3/2, 5/2, 4/3 and 7/3-way pneumatic valves for panel mounting
Wide range of actuating elements


x
Port size G 1/4"
Air flow 1250 l/min
Operating pressure 2...10 bar
Funktion Double solenoid
Power consumption 3 W / 5 VA
x

 Port size G 1/4"

Air flow 1250 l/min
Operating pressure 2...10 bar
Funktion Single solenoid | NC
Power consumption 3 W / 5 VA
x

pneumatic connection fitting for Valves & actuators

x

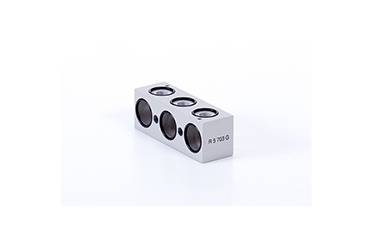

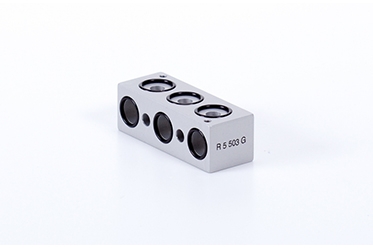

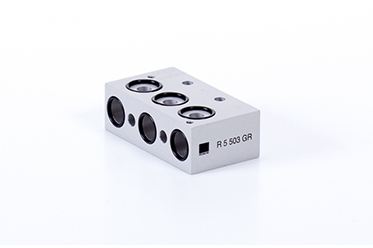

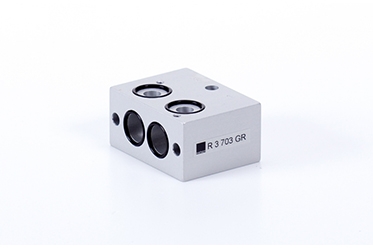

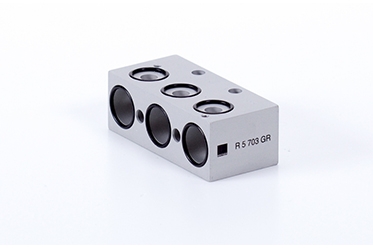

Manifold Plates
Series 22 mm+
for 5-way valves
Modular manifold plate| G-series
Functions individual position l includes 1 valve-position
Functions individual position l includes 1 valve-position
x
Port size G 1/4"
Air flow 1250 l/min
Operating pressure 2...10 bar
Funktion Single solenoid | NC
Power consumption 3 W / 5 VA
x
Port size G 1/8"
Air flow 280 l/min
Operating pressure -0,9...10 bar
Actuating force 14 N
Function spring return | NC/NO
Port size / port position ports on the side
x
Port size G 1/8"
Air flow max. 450 l/min
Operating pressure 2...10 bar
x
Port size G 1/8
Air flow 280 l/min
Operating pressure -0,9...10 bar
Actuating force 10 N
Function spring return | NC/NO
Port size / port position ports on the side
x
Port size G 1/8
Air flow 280 l/min
Operating pressure -0,9...10 bar
Actuating force 10 N
Function spring return | NC/NO
Port size / port position ports on the side
x
Port size G 1/8"
Air flow 280 l/min
Operating pressure -0,9...10 bar
Actuating force 14 N
Function spring return | NC/NO
Port size / port position ports on the side
x

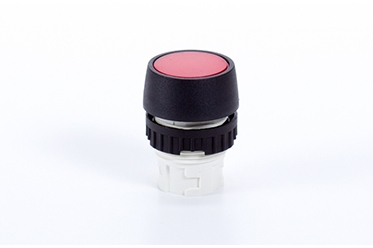

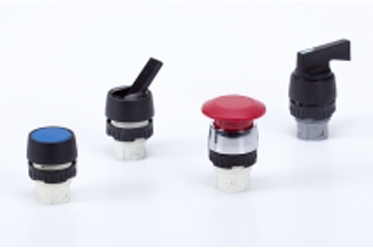

Type number BA 221 02
Short description Push button, red
Actuation Push button for BA-valves
Colour red
Actuating force 16 N
x
Port size G 1/8"
Air flow 650 l/min
Operating pressure 2...10 bar
Funktion Double solenoid
Power consumption 3 W / 5 VA
x
Port size G 1/4"
Air flow 1250 l/min
Operating pressure 2,5...10 bar
Funktion Single solenoid
Power consumption 3 W / 5 VA
x
Port size G 1/4"
Air flow 1450 l/min
Operating pressure 1,5...10 bar
Funktion Single solenoid
Power consumption 3 W / 5 VA
x
Port size G 3/8"
Air flow 2250 l/min
Operating pressure 1,5...10 bar
Funktion Single solenoid
Power consumption 3 W / 5 VA
x
Port size G 3/4"
Air flow 6000 l/min
Operating pressure 1...10 bar
Funktion Single solenoid
Power consumption 3 W / 5 VA
x
Port size G 1/2"
Air flow 3000 l/min
Operating pressure 1...10 bar
Funktion Single solenoid
Power consumption 3 W / 5 VA
x

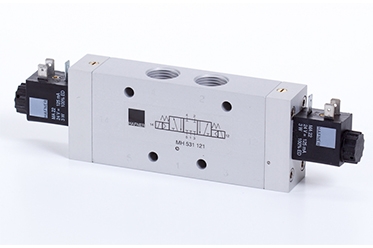

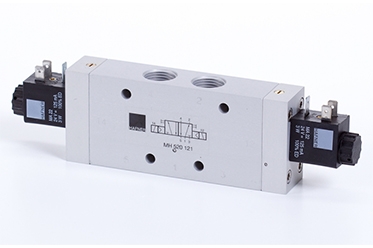

Port size G 1/2"
Air flow 3000 l/min
Operating pressure 1...10 bar
Funktion Double solenoid
Power consumption 3 W / 5 VA
x
Port size G 1/4"
Air flow 1250 l/min
Operating pressure 3...10 bar
Funktion 5/3-way | centre closed
Power consumption 3 W / 5 VA
x
Port size G 1/2"
Air flow 3000 l/min
Operating pressure 1...10 bar
Funktion 5/3-way | centre closed
Power consumption 3 W / 5 VA
x
Port size G 1/4"
Air flow 1250 l/min
Operating pressure 3...10 bar
Funktion 5/3-way | centre exhausted
Power consumption 3 W / 5 VA
x
Port size G 1/4"
Air flow 1250 l/min
Operating pressure 2...10 bar
Funktion Single solenoid | NC
Power consumption 3 W / 5 VA
Interface NAMUR [1/4"]
x
Port size G 1/4"
Air flow 1250 l/min
Operating pressure 2...10 bar
Funktion Single solenoid
Power consumption 3 W / 5 VA
Interface NAMUR [1/4"]
x
Port size G 1/2"
Air flow 3000 l/min
Operating pressure 1...10 bar
Funktion Single solenoid
Power consumption 3 W / 5 VA
Interface NAMUR [1/2"]
x
Port size G 1/2"
Air flow 3000 l/min
Operating pressure 1...10 bar
Funktion Double solenoid
Power consumption 3 W / 5 VA
Interface NAMUR [1/2"]
x
Port size G 1/4"
Air flow 1250 l/min
Operating pressure 2...10 bar
Actuating pressure Same as operating pressure
Size of actuation port G 1/8"
Funktion monostabil
Interface NAMUR [1/4"]
x
Port size G 1/4"
Air flow 1250 l/min
Operating pressure 1...10 bar
Actuating pressure 3...10 bar
Size of actuation port G 1/8"
Function Single pilot
x
Port size G 1/8"
Air flow 650 l/min
Operating pressure 1...10 bar
Actuating pressure 3...10 bar
Size of actuation port G 1/8"
Function Single pilot
x
Port size G 1/8"
Air flow 650 l/min
Operating pressure 1...10 bar
Actuating pressure 2,5...10 bar
Size of actuation port G 1/8"
Function Double pilot
x
Port size G 1/2"
Air flow 3000 l/min
Operating pressure 1...10 bar
Actuating pressure 3...10 bar
Size of actuation port G 1/8"
Function Single pilot
x

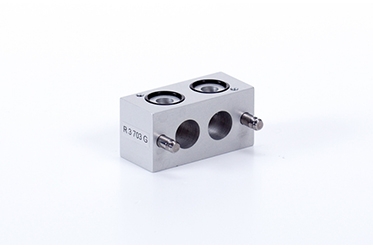

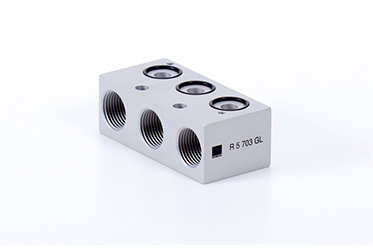

Port size | 1 G 3/8"
Port size | 2, 4 in the valve
Port size | 3, 5 G 3/8"
Functions End-plate right l includes 1 valve-position
x
Port size | 1
Port size | 2, 4 in the valve
Port size | 3, 5
Functions individual position l includes 1 valve-position
x
Port size | 1 G 3/8"
Port size | 2, 4 in the valve
Port size | 3, 5 G 3/8"
Functions End-plate left l includes 1 valve-position
x
Port size | 1 G 1/4"
Port size | 2, 4 in the valve
Port size | 3, 5 G 1/4"
Functions End-plate right l includes 1 valve-position
x
Port size | 1
Port size | 2, 4 in the valve
Port size | 3, 5
Functions individual position l includes 1 valve-position
x
Port size | 1 G 3/8"
Port size | 2 in the valve
Port size | 3 G 3/8"
Function End-plate right l includes 1 valve-position
x
Port size | 1
Port size | 2 in the valve
Port size | 3
Function individual position l includes 1 valve-position
x
Port size | 1 G 3/8"
Port size | 2 in the valve
Port size | 3 G 3/8"
Function End-plate left l includes 1 valve-position
x

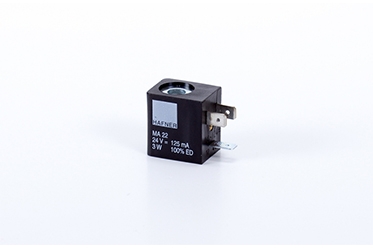

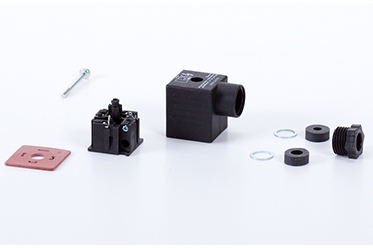

Voltage  24,110,230_AC
Power consumption 5 VA
Anschluss Form B (DIN EN 175301-803)
Protection Thermoplastic polyester
x
x
Port size G 1/8
Air flow 280 l/min
Operating pressure -0,9...10 bar
Actuating force 14 N
Function spring return | NC/NO
Port size / port position ports on the side
x
Port size G 1/8
Air flow 280 l/min
Operating pressure -0,9...10 bar
Actuating force 10 N
Function spring return | NC/NO
Port size / port position ports on the side
x
Port size G 1/8"
Air flow 280 l/min
Operating pressure -0,9...10 bar
Actuating force 14 N
Function spring return
Port size / port position ports on the side
x

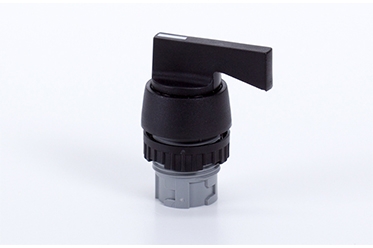

Actuation Rotary lever long for BA-valves
Colour black
Actuating force 42 N/cm
x

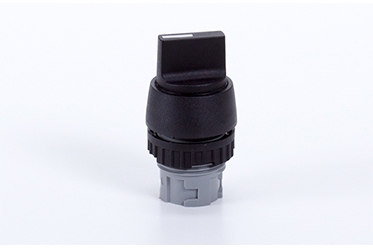

Type number BA 227 01
Short description Actuator twist lever short, black, L-Position
Actuation Rotary lever short for BA-valves
Colour black
Actuating force 16 N/cm
x

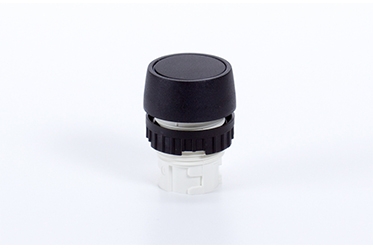

Type number BA 221 01
Short description Push button, black
Actuation Push button for BA-valves
Colour black
Actuating force 16 N
x
Type number KS2U-014/8 G HA
Short description FRL-unit - 8 bar - 5 micron + Pressure gauge (FS-0)
Connection G 1/4"
Air-flow 600 l/min
Operating pressure 1,5...12 bar
Operating pressure outlet 0,5...8 bar
Filter fineness 5 micron
Unit size FS-0
x
Type number KS2U-114/8 G HA
Short description FRL-unit - 8 bar - 5 micron + Pressure gauge (FS-1)
Connection G 1/4"
Air-flow 1800 l/min
Operating pressure 1,5...16 bar
Operating pressure outlet 0,5...8 bar
Filter fineness 5 micron
Unit size FS-1
x
Type number KS2U-212/8 G HA
Short description FRL-unit - 8 bar - 5 micron + Pressure gauge (FS-2)
Connection G 1/2"
Air-flow 3500 l/min
Operating pressure 1,5...16 bar
Operating pressure outlet 0,5...8 bar
Filter fineness 5 micron
Unit size FS-2
x

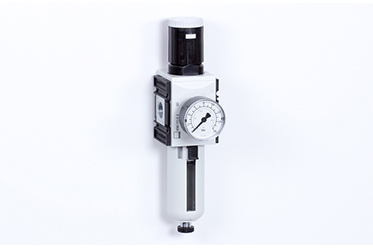

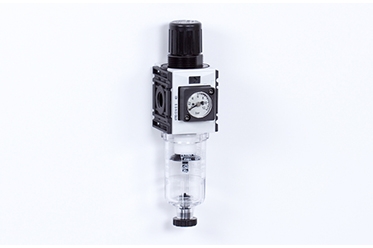

Type number KFRG-014/8 G HA
Short description Filter-regulator - 8 bar - 5 micron + Pressure gauge (FS-0)
Connection G 1/4"
Air-flow 1000 l/min
Operating pressure 1,5...12 bar
Operating pressure outlet 0,5...8 bar
Filter fineness 5 micron
Unit size FS-0
x
Type number KFRG-114/8 G HA
Short description Filter-regulator - 8 bar - 5 micron + Pressure gauge (FS-1)
Connection G 1/4"
Air-flow 2200 l/min
Operating pressure 1,5...16 bar
Operating pressure outlet 0,5...8 bar
Filter fineness 5 micron
Unit size FS-1
x
Type number KFRG-212/8 G HA
Short description Filter-regulator - 8 bar - 5 micron + Pressure gauge (FS-2)
Connection G 1/2"
Air-flow 4500 l/min
Operating pressure 1,5...16 bar
Operating pressure outlet 0,5...8 bar
Filter fineness 5 micron
Unit size FS-2
x

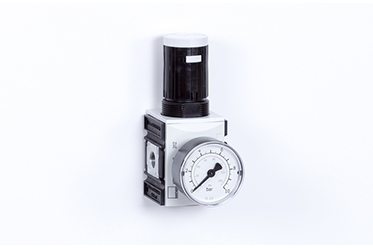

Type number KREG-014/8 G
Short description Regulator - 8 bar + Pressure gauge (FS-0)
Connection G 1/4"
Air-flow 1000 l/min
Operating pressure 0...12 bar
Operating pressure outlet 0,5...8 bar
Unit size FS-0
x
Type number KREG-114/8 G
Short description Regulator - 8 bar + Pressure gauge (FS-1)
Connection G 1/4"
Air-flow 2200 l/min
Operating pressure 0...16 bar
Operating pressure outlet 0,5...8 bar
Unit size FS-1
x
Type number KREG-212/8 G
Short description Regulator - 8 bar + Pressure gauge (FS-2)
Connection G 1/2"
Air-flow 5200 l/min
Operating pressure 0...16 bar
Operating pressure outlet 0,5...8 bar
Unit size FS-2
