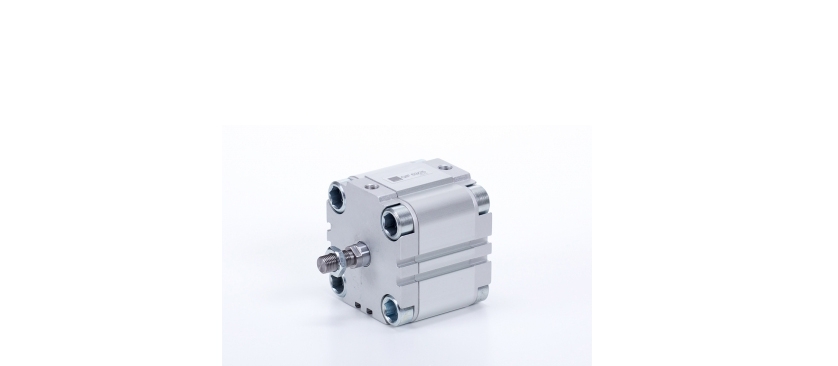

Compact cylinders UNITOP


code :




Facebook Twitter Google Digg Reddit LinkedIn Pinterest StumbleUpon



  • Details
  • Specifications
  • Video

Type number

Diameter

Stroke

Connection

Piston diameter

Piston diameter, male

Operating pressure

Datasheet

QIF 12/5

Ø 12 mm

5 mm

M 5

Ø 6 mm

M 6

1...10 bar

Datasheet »

QIF 12/10

Ø 12 mm

10 mm

M 5

Ø 6 mm

M 6

1...10 bar

Datasheet »

QIF 12/15

Ø 12 mm

15 mm

M 5

Ø 6 mm

M 6

1...10 bar

Datasheet »

QIF 12/20

Ø 12 mm

20 mm

M 5

Ø 6 mm

M 6

1...10 bar

Datasheet »

QIF 12/25

Ø 12 mm

25 mm

M 5

Ø 6 mm

M 6

1...10 bar

Datasheet »

QIF 12/30

Ø 12 mm

30 mm

M 5

Ø 6 mm

M 6

1...10 bar

Datasheet »

QIF 12/40

Ø 12 mm

40 mm

M 5

Ø 6 mm

M 6

1...10 bar

Datasheet »

QIF 16/5

Ø 16 mm

5 mm

M 5

Ø 8 mm

M 8

1...10 bar

Datasheet »

QIF 16/10

Ø 16 mm

10 mm

M 5

Ø 8 mm

M 8

1...10 bar

Datasheet »

QIF 16/15

Ø 16 mm

15 mm

M 5

Ø 8 mm

M 8

1...10 bar

Datasheet »

QIF 16/20

Ø 16 mm

20 mm

M 5

Ø 8 mm

M 8

1...10 bar

Datasheet »

QIF 16/25

Ø 16 mm

25 mm

M 5

Ø 8 mm

M 8

1...10 bar

Datasheet »

QIF 16/30

Ø 16 mm

30 mm

M 5

Ø 8 mm

M 8

1...10 bar

Datasheet »

QIF 16/40

Ø 16 mm

40 mm

M 5

Ø 8 mm

M 8

1...10 bar

Datasheet »

QIF 20/5

Ø 20 mm

5 mm

M 5

Ø 10 mm

M 10 x 1,25

1...10 bar

Datasheet »

QIF 20/10

Ø 20 mm

10 mm

M 5

Ø 10 mm

M 10 x 1,25

1...10 bar

Datasheet »

QIF 20/15

Ø 20 mm

15 mm

M 5

Ø 10 mm

M 10 x 1,25

1...10 bar

Datasheet »

QIF 20/20

Ø 20 mm

20 mm

M 5

Ø 10 mm

M 10 x 1,25

1...10 bar

Datasheet »

QIF 20/25

Ø 20 mm

25 mm

M 5

Ø 10 mm

M 10 x 1,25

1...10 bar

Datasheet »

QIF 20/30

Ø 20 mm

30 mm

M 5

Ø 10 mm

M 10 x 1,25

1...10 bar

Datasheet »

QIF 20/40

Ø 20 mm

40 mm

M 5

Ø 10 mm

M 10 x 1,25

1...10 bar

Datasheet »

QIF 20/50

Ø 20 mm

50 mm

M 5

Ø 10 mm

M 10 x 1,25

1...10 bar

Datasheet »

QIF 25/5

Ø 25 mm

5 mm

M 5

Ø 10 mm

M 10 x 1,25

1...10 bar

Datasheet »

QIF 25/10

Ø 25 mm

10 mm

M 5

Ø 10 mm

M 10 x 1,25

1...10 bar

Datasheet »

QIF 25/15

Ø 25 mm

15 mm

M 5

Ø 10 mm

M 10 x 1,25

1...10 bar

Datasheet »

QIF 25/20

Ø 25 mm

20 mm

M 5

Ø 10 mm

M 10 x 1,25

1...10 bar

Datasheet »

QIF 25/25

Ø 25 mm

25 mm

M 5

Ø 10 mm

M 10 x 1,25

1...10 bar

Datasheet »

QIF 25/30

Ø 25 mm

30 mm

M 5

Ø 10 mm

M 10 x 1,25

1...10 bar

Datasheet »

QIF 25/40

Ø 25 mm

40 mm

M 5

Ø 10 mm

M 10 x 1,25

1...10 bar

Datasheet »

QIF 25/50

Ø 25 mm

50 mm

M 5

Ø 10 mm

M 10 x 1,25

1...10 bar

Datasheet »

QIF 32/5

Ø 32 mm

5 mm

G 1/8"

Ø 12 mm

M 10 x 1,25

1...10 bar

Datasheet »

QIF 32/10

Ø 32 mm

10 mm

G 1/8"

Ø 12 mm

M 10 x 1,25

1...10 bar

Datasheet »

QIF 32/15

Ø 32 mm

15 mm

G 1/8"

Ø 12 mm

M 10 x 1,25

1...10 bar

Datasheet »

QIF 32/20

Ø 32 mm

20 mm

G 1/8"

Ø 12 mm

M 10 x 1,25

1...10 bar

Datasheet »

QIF 32/25

Ø 32 mm

25 mm

G 1/8"

Ø 12 mm

M 10 x 1,25

1...10 bar

Datasheet »

QIF 32/30

Ø 32 mm

30 mm

G 1/8"

Ø 12 mm

M 10 x 1,25

1...10 bar

Datasheet »

QIF 32/40

Ø 32 mm

40 mm

G 1/8"

Ø 12 mm

M 10 x 1,25

1...10 bar

Datasheet »

QIF 32/50

Ø 32 mm

50 mm

G 1/8"

Ø 12 mm

M 10 x 1,25

1...10 bar

Datasheet »

QIF 32/60

Ø 32 mm

60 mm

G 1/8"

Ø 12 mm

M 10 x 1,25

1...10 bar

Datasheet »

QIF 32/80

Ø 32 mm

80 mm

G 1/8"

Ø 12 mm

M 10 x 1,25

1...10 bar

Datasheet »

QIF 32/100

Ø 32 mm

100 mm

G 1/8"

Ø 12 mm

M 10 x 1,25

1...10 bar

Datasheet »

QIF 32/125

Ø 32 mm

125 mm

G 1/8"

Ø 12 mm

M 10 x 1,25

1...10 bar

Datasheet »

QIF 32/150

Ø 32 mm

150 mm

G 1/8"

Ø 12 mm

M 10 x 1,25

1...10 bar

Datasheet »

QIF 40/5

Ø 40 mm

5 mm

G 1/8"

Ø 12 mm

M 10 x 1,25

1...10 bar

Datasheet »

QIF 40/10

Ø 40 mm

10 mm

G 1/8"

Ø 12 mm

M 10 x 1,25

1...10 bar

Datasheet »

QIF 40/15

Ø 40 mm

15 mm

G 1/8"

Ø 12 mm

M 10 x 1,25

1...10 bar

Datasheet »

QIF 40/20

Ø 40 mm

20 mm

G 1/8"

Ø 12 mm

M 10 x 1,25

1...10 bar

Datasheet »

QIF 40/25

Ø 40 mm

25 mm

G 1/8"

Ø 12 mm

M 10 x 1,25

1...10 bar

Datasheet »

QIF 40/30

Ø 40 mm

30 mm

G 1/8"

Ø 12 mm

M 10 x 1,25

1...10 bar

Datasheet »

QIF 40/40

Ø 40 mm

40 mm

G 1/8"

Ø 12 mm

M 10 x 1,25

1...10 bar

Datasheet »

QIF 40/50

Ø 40 mm

50 mm

G 1/8"

Ø 12 mm

M 10 x 1,25

1...10 bar

Datasheet »

QIF 40/60

Ø 40 mm

60 mm

G 1/8"

Ø 12 mm

M 10 x 1,25

1...10 bar

Datasheet »

QIF 40/80

Ø 40 mm

80 mm

G 1/8"

Ø 12 mm

M 10 x 1,25

1...10 bar

Datasheet »

QIF 40/100

Ø 40 mm

100 mm

G 1/8"

Ø 12 mm

M 10 x 1,25

1...10 bar

Datasheet »

QIF 40/125

Ø 40 mm

125 mm

G 1/8"

Ø 12 mm

M 10 x 1,25

1...10 bar

Datasheet »

QIF 40/150

Ø 40 mm

150 mm

G 1/8"

Ø 12 mm

M 10 x 1,25

1...10 bar

Datasheet »

QIF 50/5

Ø 50 mm

5 mm

G 1/8"

Ø 16 mm

M 12 x 1,25

1...10 bar

Datasheet »

QIF 50/10

Ø 50 mm

10 mm

G 1/8"

Ø 16 mm

M 12 x 1,25

1...10 bar

Datasheet »

QIF 50/15

Ø 50 mm

15 mm

G 1/8"

Ø 16 mm

M 12 x 1,25

1...10 bar

Datasheet »

QIF 50/20

Ø 50 mm

20 mm

G 1/8"

Ø 16 mm

M 12 x 1,25

1...10 bar

Datasheet »

QIF 50/25

Ø 50 mm

25 mm

G 1/8"

Ø 16 mm

M 12 x 1,25

1...10 bar

Datasheet »

QIF 50/30

Ø 50 mm

30 mm

G 1/8"

Ø 16 mm

M 12 x 1,25

1...10 bar

Datasheet »

QIF 50/40

Ø 50 mm

40 mm

G 1/8"

Ø 16 mm

M 12 x 1,25

1...10 bar

Datasheet »

QIF 50/50

Ø 50 mm

50 mm

G 1/8"

Ø 16 mm

M 12 x 1,25

1...10 bar

Datasheet »

QIF 50/60

Ø 50 mm

60 mm

G 1/8"

Ø 16 mm

M 12 x 1,25

1...10 bar

Datasheet »

QIF 50/80

Ø 50 mm

80 mm

G 1/8"

Ø 16 mm

M 12 x 1,25

1...10 bar

Datasheet »

QIF 50/100

Ø 50 mm

100 mm

G 1/8"

Ø 16 mm

M 12 x 1,25

1...10 bar

Datasheet »

QIF 50/125

Ø 50 mm

125 mm

G 1/8"

Ø 16 mm

M 12 x 1,25

1...10 bar

Datasheet »

QIF 50/150

Ø 50 mm

150 mm

G 1/8"

Ø 16 mm

M 12 x 1,25

1...10 bar

Datasheet »

QIF 50/200

Ø 50 mm

200 mm

G 1/8"

Ø 16 mm

M 12 x 1,25

1...10 bar

Datasheet »

QIF 63/5

Ø 63 mm

5 mm

G 1/8"

Ø 16 mm

M 12 x 1,25

1...10 bar

Datasheet »

QIF 63/10

Ø 63 mm

10 mm

G 1/8"

Ø 16 mm

M 12 x 1,25

1...10 bar

Datasheet »

QIF 63/15

Ø 63 mm

15 mm

G 1/8"

Ø 16 mm

M 12 x 1,25

1...10 bar

Datasheet »

QIF 63/20

Ø 63 mm

20 mm

G 1/8"

Ø 16 mm

M 12 x 1,25

1...10 bar

Datasheet »

QIF 63/25

Ø 63 mm

25 mm

G 1/8"

Ø 16 mm

M 12 x 1,25

1...10 bar

Datasheet »

QIF 63/30

Ø 63 mm

30 mm

G 1/8"

Ø 16 mm

M 12 x 1,25

1...10 bar

Datasheet »

QIF 63/40

Ø 63 mm

40 mm

G 1/8"

Ø 16 mm

M 12 x 1,25

1...10 bar

Datasheet »

QIF 63/50

Ø 63 mm

50 mm

G 1/8"

Ø 16 mm

M 12 x 1,25

1...10 bar

Datasheet »

QIF 63/60

Ø 63 mm

60 mm

G 1/8"

Ø 16 mm

M 12 x 1,25

1...10 bar

Datasheet »

QIF 63/80

Ø 63 mm

80 mm

G 1/8"

Ø 16 mm

M 12 x 1,25

1...10 bar

Datasheet »

QIF 63/100

Ø 63 mm

100 mm

G 1/8"

Ø 16 mm

M 12 x 1,25

1...10 bar

Datasheet »

QIF 63/125

Ø 63 mm

125 mm

G 1/8"

Ø 16 mm

M 12 x 1,25

1...10 bar

Datasheet »

QIF 63/150

Ø 63 mm

150 mm

G 1/8"

Ø 16 mm

M 12 x 1,25

1...10 bar

Datasheet »

QIF 63/200

Ø 63 mm

200 mm

G 1/8"

Ø 16 mm

M 12 x 1,25

1...10 bar

Datasheet »

QIF 80/5

Ø 80 mm

5 mm

G 1/8"

Ø 20 mm

M 16 x 1,5

1...10 bar

Datasheet »

QIF 80/10

Ø 80 mm

10 mm

G 1/8"

Ø 20 mm

M 16 x 1,5

1...10 bar

Datasheet »

QIF 80/15

Ø 80 mm

15 mm

G 1/8"

Ø 20 mm

M 16 x 1,5

1...10 bar

Datasheet »

QIF 80/20

Ø 80 mm

20 mm

G 1/8"

Ø 20 mm

M 16 x 1,5

1...10 bar

Datasheet »

QIF 80/25

Ø 80 mm

25 mm

G 1/8"

Ø 20 mm

M 16 x 1,5

1...10 bar

Datasheet »

QIF 80/30

Ø 80 mm

30 mm

G 1/8"

Ø 20 mm

M 16 x 1,5

1...10 bar

Datasheet »

QIF 80/40

Ø 80 mm

40 mm

G 1/8"

Ø 20 mm

M 16 x 1,5

1...10 bar

Datasheet »

QIF 80/50

Ø 80 mm

50 mm

G 1/8"

Ø 20 mm

M 16 x 1,5

1...10 bar

Datasheet »

QIF 80/60

Ø 80 mm

60 mm

G 1/8"

Ø 20 mm

M 16 x 1,5

1...10 bar

Datasheet »

QIF 80/80

Ø 80 mm

80 mm

G 1/8"

Ø 20 mm

M 16 x 1,5

1...10 bar

Datasheet »

QIF 80/100

Ø 80 mm

100 mm

G 1/8"

Ø 20 mm

M 16 x 1,5

1...10 bar

Datasheet »

QIF 80/125

Ø 80 mm

125 mm

G 1/8"

Ø 20 mm

M 16 x 1,5

1...10 bar

Datasheet »

QIF 80/150

Ø 80 mm

150 mm

G 1/8"

Ø 20 mm

M 16 x 1,5

1...10 bar

Datasheet »

QIF 80/200

Ø 80 mm

200 mm

G 1/8"

Ø 20 mm

M 16 x 1,5

1...10 bar

Datasheet »

QIF 100/5

Ø 100 mm

5 mm

G 1/4"

Ø 25 mm

M 20 x 1,5

1...10 bar

Datasheet »

QIF 100/10

Ø 100 mm

10 mm

G 1/4"
