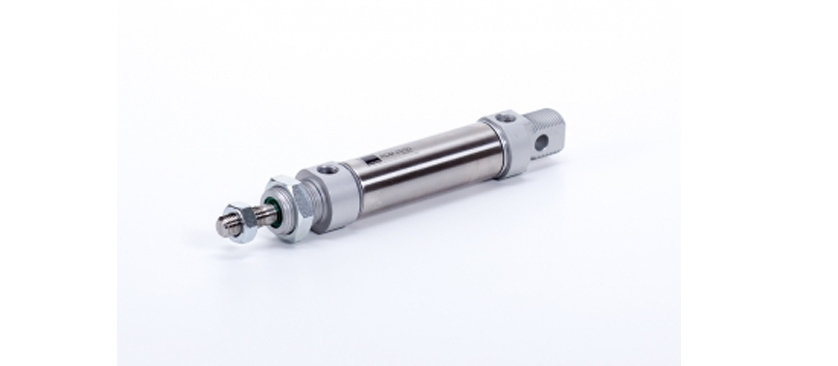

Round cylinders ISO 6432

Type number

Diameter

Stroke

Connection

Piston diameter

Piston diameter, male

Operating pressure

Datasheet

RDM 16/10

Ø 16 mm

10 mm

M 5

Ø 6 mm

M 6

1...10 bar

Datasheet »

RDM 16/25

Ø 16 mm

25 mm

M 5

Ø 6 mm

M 6

1...10 bar

Datasheet »

RDM 16/40

Ø 16 mm

40 mm

M 5

Ø 6 mm

M 6

1...10 bar

Datasheet »

RDM 16/50

Ø 16 mm

50 mm

M 5

Ø 6 mm

M 6

1...10 bar

Datasheet »

RDM 16/80

Ø 16 mm

80 mm

M 5

Ø 6 mm

M 6

1...10 bar

Datasheet »

RDM 16/100

Ø 16 mm

100 mm

M 5

Ø 6 mm

M 6

1...10 bar

Datasheet »

RDM 16/125

Ø 16 mm

125 mm

M 5

Ø 6 mm

M 6

1...10 bar

Datasheet »

RDM 16/160

Ø 16 mm

160 mm

M 5

Ø 6 mm

M 6

1...10 bar

Datasheet »

RDM 16/200

Ø 16 mm

200 mm

M 5

Ø 6 mm

M 6

1...10 bar

Datasheet »

RDM 16/250

Ø 16 mm

250 mm

M 5

Ø 6 mm

M 6

1...10 bar

Datasheet »

RDM 20/10

Ø 20 mm

10 mm

G 1/8"

Ø 8 mm

M 8

1...10 bar

Datasheet »

RDM 20/25

Ø 20 mm

25 mm

G 1/8"

Ø 8 mm

M 8

1...10 bar

Datasheet »

RDM 20/40

Ø 20 mm

40 mm

G 1/8"

Ø 8 mm

M 8

1...10 bar

Datasheet »

RDM 20/50

Ø 20 mm

50 mm

G 1/8"

Ø 8 mm

M 8

1...10 bar

Datasheet »

RDM 20/80

Ø 20 mm

80 mm

G 1/8"

Ø 8 mm

M 8

1...10 bar

Datasheet »

RDM 20/100

Ø 20 mm

100 mm

G 1/8"

Ø 8 mm

M 8

1...10 bar

Datasheet »

RDM 20/125

Ø 20 mm

125 mm

G 1/8"

Ø 8 mm

M 8

1...10 bar

Datasheet »

RDM 20/160

Ø 20 mm

160 mm

G 1/8"

Ø 8 mm

M 8

1...10 bar

Datasheet »

RDM 20/200

Ø 20 mm

200 mm

G 1/8"

Ø 8 mm

M 8

1...10 bar

Datasheet »

RDM 20/250

Ø 20 mm

250 mm

G 1/8"

Ø 8 mm

M 8

1...10 bar

Datasheet »

RDM 20/320

Ø 20 mm

320 mm

G 1/8"

Ø 8 mm

M 8

1...10 bar

Datasheet »

RDM 25/10

Ø 25 mm

10 mm

G 1/8"

Ø 10 mm

M 10 x 1,25

1...10 bar

Datasheet »

RDM 25/25

Ø 25 mm

25 mm

G 1/8"

Ø 10 mm

M 10 x 1,25

1...10 bar

Datasheet »

RDM 25/40

Ø 25 mm

40 mm

G 1/8"

Ø 10 mm

M 10 x 1,25

1...10 bar

Datasheet »

RDM 25/50

Ø 25 mm

50 mm

G 1/8"

Ø 10 mm

M 10 x 1,25

1...10 bar

Datasheet »

RDM 25/80

Ø 25 mm

80 mm

G 1/8"

Ø 10 mm

M 10 x 1,25

1...10 bar

Datasheet »

RDM 25/100

Ø 25 mm

100 mm

G 1/8"

Ø 10 mm

M 10 x 1,25

1...10 bar

Datasheet »

RDM 25/125

Ø 25 mm

125 mm

G 1/8"

Ø 10 mm

M 10 x 1,25

1...10 bar

Datasheet »

RDM 25/160

Ø 25 mm

160 mm

G 1/8"

Ø 10 mm

M 10 x 1,25

1...10 bar

Datasheet »

RDM 25/200

Ø 25 mm

200 mm

G 1/8"

Ø 10 mm

M 10 x 1,25

1...10 bar

Datasheet »

RDM 25/250

Ø 25 mm

250 mm

G 1/8"

Ø 10 mm

M 10 x 1,25

1...10 bar

Datasheet »

RDM 25/320

Ø 25 mm

320 mm

G 1/8"

Ø 10 mm

M 10 x 1,25

1...10 bar
