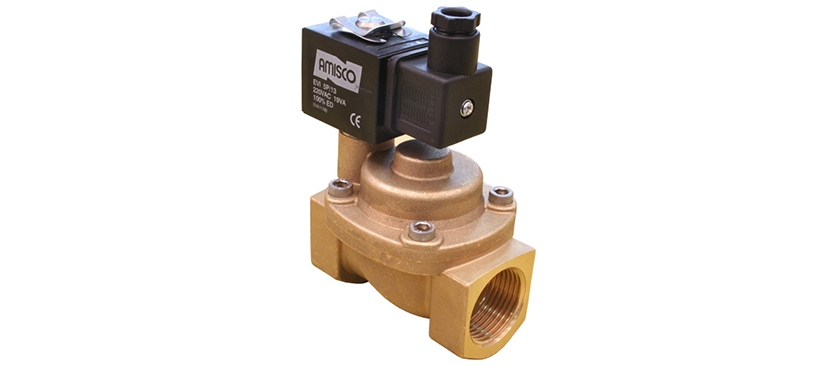

STEAM VAVLE 1


code : 4911C-KBPF010-250

REFERANCE: 4911-KBPF010-250-220AC
MAIN SERIES: Steam Valve
FUNCTION: 2/2 Ways
POSITION: Normally Closed
OPERATION TYPE: Pilot Operating
SEAT SEAL MATERIAL: PTFE Piston / PTFE Seal
PORT SIZE: 1”
ORIFICE: 25mm
Kv: 185.00 l/min
Pmin-Pmax (bar): 0,5-10 bar
Tmin / Tmax (°C): -10 °C / 180 °C
WEIGHT: 1.205 Kg
COIL VOLTAGE - TOLERANCE: 12,24,220,230V AC/DC
