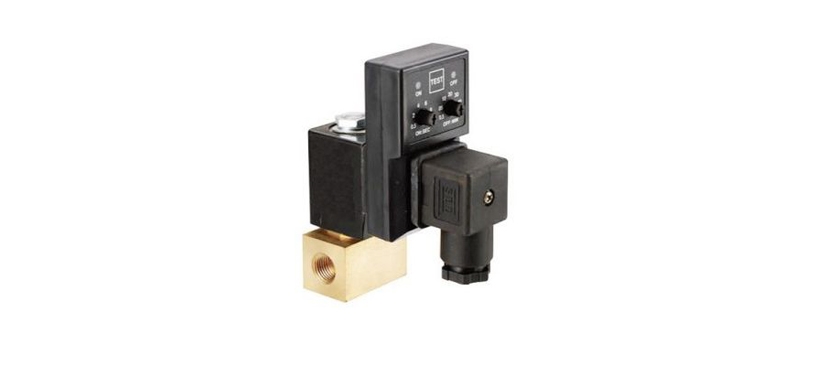

Automatic drain valves with timers

code :

The condensate removal timer is a plug-on controller specially design
for drain valves. The unit offers an easy time cycle programming. The
draining time can be set via the “ON” trimmer between 0.5 and 10
seconds. The “OFF” trimmer allows to adjust the delay time between
two draining cycles from 0.5 to 45 minutes. The unit is ready to
control the valve as soon as the power is switched on. The ON/OFF
sequence will be repeated so long as the unit is fed. Two LED’s
indicate the output status. A “TEST” button is provided to check the
cycle settings and to restart the control sequence from the output
status “ON”.
Condensate drainage system
Timed systems.
Supply voltage: 24 to 240V AC/DC±10% 50/60Hz
Output voltage: same as supply voltage
Load current: max. 1A
Standby current: 8mA max
Operating temp. range: - 40°C to + 60°C
Connector: EN 175301-803 / ISO 4400
Environmental protection: IP65 (assembled with delivered gaskets)
Housing dimensions: 69 x 43 x 21mm
On time: 0.5 to 10 seconds
Off time: 0.5 to 45 minutes
Scale accuracy: ±10%
Indicators: Green LED – On phase;
Red LED – Off phase.
Shell: ABS-PA 765
Connectors for EV (to be order separately)
Pg 9 (6÷8mm) or Pg 11(8÷10mm)

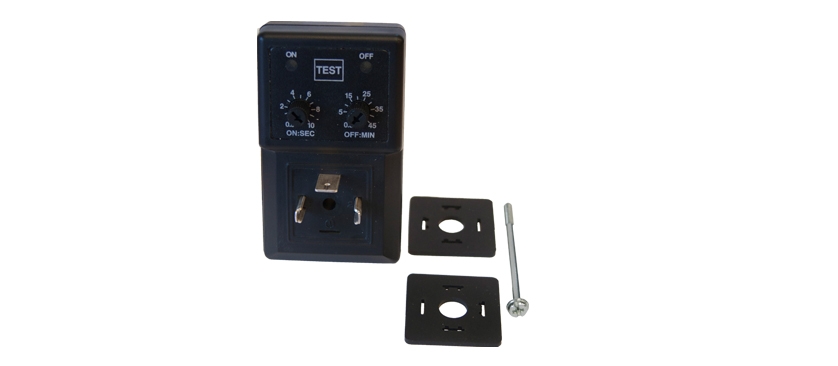

1. Push-button TEST
2. Green Led not supplied : output power present (ON)
3. Red Led load supplied : output power absent (OFF)
4. Trimmer "ON": regulation time "ON"
5. Trimmer "OFF": pause time regulation “OFF
In the near future available also with UL approval.
In accordance with RoHS.
