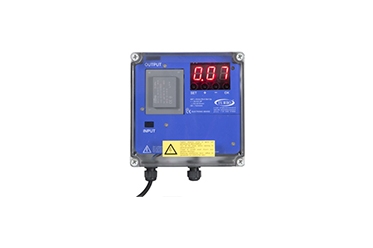

 Timer with Deffrential pressure switch

ECONOMIST SERIES E2T WITH DP READING

 8, 12, 16, 32  channels

OUTPUT SIGNAL 4-20mA INCLUDED

ENCLOSURE WITH PROTECTION IP65

OPERATING TEMPERATURE -10°C + 55°C

POWER SUPPLY: 220VAC

OUTPUT VALVE: 024VDC

FILTER TRAPS INCLUDED

It has 2 output relay contacts and 2 digital input contacts.
Differential pressure digital control through internal transducer, which allows the accurate analysis of the filter clogging status.
3-digit luminous LED display, which allows to read the filter clogging status, the active solenoid valves and any alarms, at all times.
x

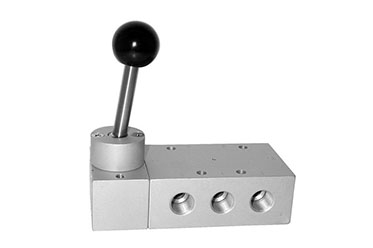

Port size G 1/4
Air flow 1250 l/min
Operating pressure 1...10 bar
Actuating force 20 N
Function spring return | NC/NO
x

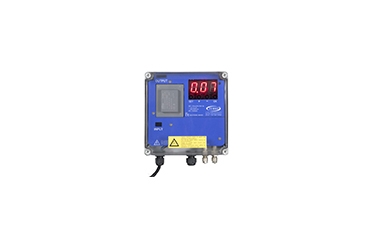

Turbo timer  4 ,8 ,16, 24 channel

Supply voltage: 24,110,220 VAC

Input voltage:selected via Jumbers(24vdc option)

Output : 24 VDC , 24-115-230 VAC 50-60 HZ

Output voltage : selected via Jumbers
x

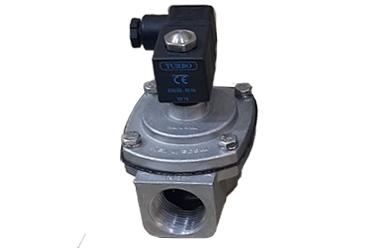

Pulse valve with coil
Model:  TF054NPMSST68ST
Temperature:Neoprene diaphragm -20°C +80°C
Operating pressure:  0.5  -  7.5 bar
Size : 2"
with coil
Supply: 24 VDC,24,110,220 VAC

x

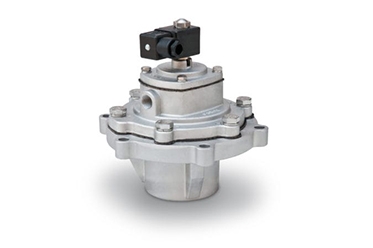

Fluids:                                                                        Non-lubricated filtered air
Operating temperature Neoprene diaphragm:            From -20°C to +80°C
Operating temperature Viton diaphragm:                    From -20°C to +200°C
Operating temperature Low Temperature diaphragm: From -40°C to +80°C
Operating pressure:                                                     From 0,5 Bar to 7,5 Bar
Body and Cover:                                                          Die-cast aluminium
Pilot unit:                                                                      Stainless steel
Screws and bolts:                                                         Stainless steel
Coil Insulation:                                                              Class H
Connector:                                                                    PG 9 EN175301-803
Connector + coil protection: I                                        P65 EN60529
Standard voltage                                                           24 V/50-60Hz (±10%) 19VA

                                                                                      115 V/50-60Hz (±10%) 19VA
                                                                                       230 V/50-60Hz (±10%) 19VA
                                                                                       24 VDC (±10%) 18Watt



x

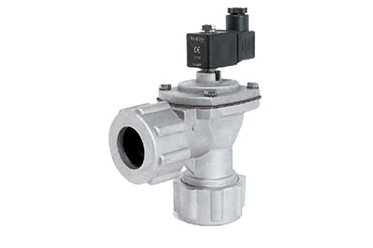

Fluids:                                                                        Non-lubricated filtered air

Operating temperature Neoprene diaphragm:            From -20°C to +80°C
Operating temperature Viton diaphragm:                    From -20°C to +200°C
Operating temperature Low Temperature diaphragm: From -40°C to +80°C
Operating pressure:                                                     From 0,5 Bar to 7,5 Bar
Body and Cover:                                                          Die-cast aluminium
Pilot unit:                                                                      Stainless steel
Screws and bolts:                                                         Stainless steel
Coil Insulation:                                                              Class H
Connector:                                                                    PG 9 EN175301-803
Connector + coil protection:                                          P65 EN60529
Standard voltage                                                           24 V/50-60Hz (±10%) 19VA

                                                                                      115 V/50-60Hz (±10%) 19VA
                                                                                       230 V/50-60Hz (±10%) 19VA
                                                                                       24 VDC (±10%) 18Watt


x

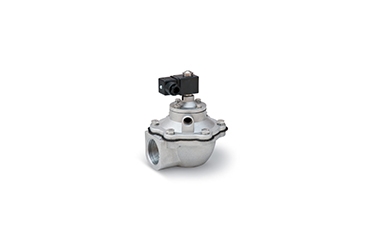

Pulse valve with coil Egypt
Model: FP40
Temperature:Neoprene diaphragm -20°C +80°C
Operating pressure:  0.5  -  7.5 bar
Size : 11/2"
with coil
Supply: 24 VDC,24,110,220 VAC
x

 Pulse valve with coil in Egypt

Model: TF025NP00MX02ST
Size : 1"
Temperature:Neoprene diaphragm -20°C +80°C
Operating pressure:  0.5 -  7.5 bar
Supply: 24 VDC,24,110,220 VAC
x

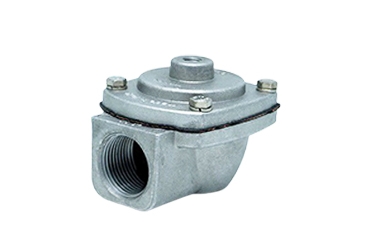

Fluids Non-lubricated filtered

air Operating pressure: between 0.5 and 7.5 bar

Operating temperature: -20°C; +80°C

Body: Brass

Pilot core: Stainless steel

Coil insulation: Class H

Connector: PG9 / IP 65

Standard voltage: 230 -110 - 24V/50-60 Hz (19 VA)

24VDC (15W) - 24VDC (12W)

Maximum Valve Distance: 3 Metres
