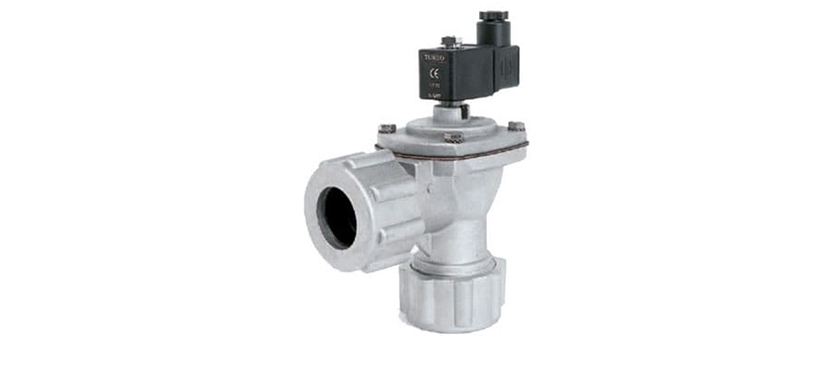

Quick connection dust valve - TD Series
code : TD020 - TD025 - TD040 - TD045
Fluids: Non-lubricated filtered air
Operating temperature Neoprene diaphragm: From -20°C to +80°C
Operating temperature Viton diaphragm: From -20°C to +200°C
Operating temperature Low Temperature diaphragm: From -40°C to +80°C
Operating pressure: From 0,5 Bar to 7,5 Bar
Body and Cover: Die-cast aluminium
Pilot unit: Stainless steel
Screws and bolts: Stainless steel
Coil Insulation: Class H
Connector: PG 9 EN175301-803
Connector + coil protection: I P65 EN60529
Standard voltage 24 V/50-60Hz (±10%) 19VA
230 V/50-60Hz (±10%) 19VA
24 VDC (±10%) 18Watt
