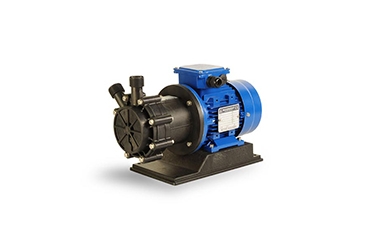

• thermoplastic pumps made in PP or PVDF
  • capacity up to 130 m3/h
  • head up to 48 mlc
  • injection molded parts
x
  • thermoplastic pumps made in PP or PVDF
  • capacity up to 7 m3/h
  • head up to 25 mlc
  • machined from a block
  • self-priming up to 3 m
x

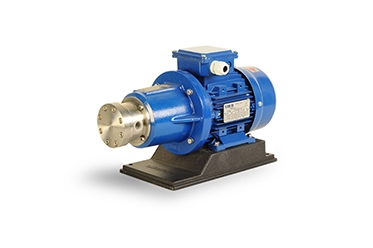

  • metallic pumps made in stainless steel AISI316
  • capacity up to 2100 l/h
  • pressure up to: 13 bar
  • dry self-priming
x

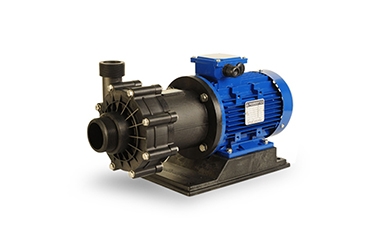

  • Flow up to 60 m3/h, head up to 38 mlc
  • Temperature: PP: max 70°C; PVDF: max 90°C
  • Max viscosity: 200 cSt
  • Pressure rating: NP 6 at 20°C
  • Lip seal for pumps size 95-10; internal PTFE bellows mechanical seal for all the other sizes
  • Open impeller
x
  • Plastic injection moulded;
  • Materials in contact with the liquid:
    • pump head: PP/PVDF;
    • Impeller: PVDF;
    • O-ring: EPDM/Viton;
    • Shaft: pure ceramic Al2O3 99,7%;
    • Bushing: PTFEC
  • Max capacity: 9 m3/h; Max head: 50 mlc
  • Temperature: PP: max 70°C – PVDF: max 90°C
  • Max viscosity: 200 cSt
  • Pressure rating: NP 6 @ 20°C
x

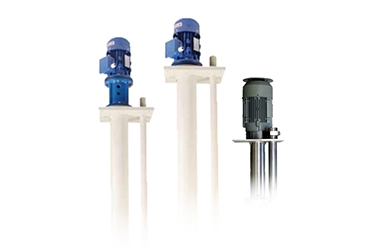

  • thermoplastic pumps made in PP or PVDF
  • capacity up to 22 m3/h
  • head up to 20 mlc
  • maximum column length 320 mm
x

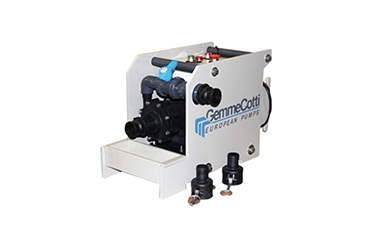

The pumping system for IBC tanks is a portable device composed of a mag drive centrifugal pump series HTM PP/PVDF, placed in a frame that can be easily moved. This system is flexible for different uses, and it is portable. The pump, placed in a proper structure, can be removed from an IBC container’s attack and connected to another, thanks to quick couplings.
