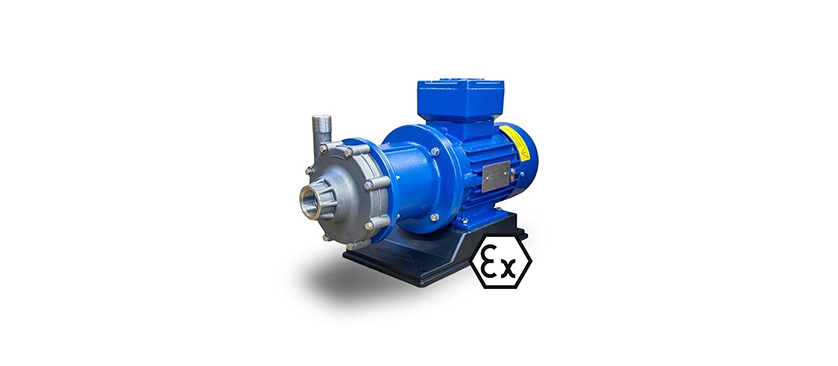

ATEX PUMPS
code : EM-T PP-PVDF
- Plastic injection moulded;
-
Materials in contact with the liquid:
- pump head: PP/PVDF;
- Impeller: PVDF;
- O-ring: EPDM/Viton;
- Shaft: pure ceramic Al2O3 99,7%;
- Bushing: PTFEC
- Max capacity: 9 m3/h; Max head: 50 mlc
- Temperature: PP: max 70°C – PVDF: max 90°C
- Max viscosity: 200 cSt
- Pressure rating: NP 6 @ 20°C
