Automatic Knife gate valves

code :

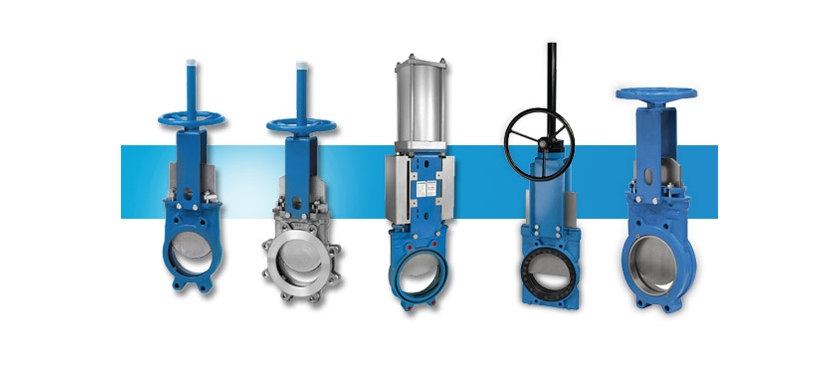

The EB model knife gate is a bi-directional valve designed for general industrial service applications. The design of the body and seat assures non-clogging shutoff on suspended solids in industries such as:

• Wastewater treatment plants
• Chemical plants
• Food and Beverage
• etc.

DN 50 to DN 1200 (larger diameters on request)
Working pressure:
DN 50 to DN 125: 16 kg/cm²
DN 150 to DN 250: 10 kg/cm²
DN 300 to DN 400: 6 kg/cm²
DN 450: 5 kg/cm²
DN 500 to DN 600: 4 kg/cm²
DN 700 to DN 1200: 2 kg/cm²
Standard flange connection:
EN1092 PN10
Face to face dimensions acc. EN558-1 serie20 (DIN3202 K1) up to DN 500.
DIR 2014/68/EU (PED) Fluid: Group 1(b), 2 (Cat. I, mod. A)
DIR 2014/34/EU (ATEX) Please contact Orbinox for information and availability of categories and zones.
