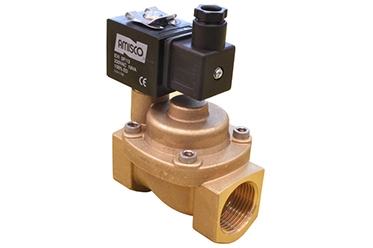

REFERANCE: 1811-ABNF016-250-220AC
MAIN SERIES: General Purpose - Low Differential Pressure
FUNCTION: 2/2 Ways
POSITION: Normally Open
OPERATION TYPE: Pilot Operating
SEAT SEAL MATERIAL: NBR Diaphragm / NBR Seal
PORT SIZE: 1”
ORIFICE: 25mm
Kv: 150.00 l/min
Pmin-Pmax (bar): 0,1-16 bar
Tmin / Tmax (°C): -10 °C / 80 °C
WEIGHT: 1.060 Kg
COIL VOLTAGE - TOLERANCE: 12,24,220,230V AC/DC
x

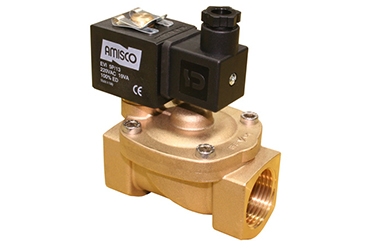

REFERANCE: 1901-ABND016-120-220AC
MAIN SERIES: General Purpose
FUNCTION: 2/2 Ways
POSITION: Normally Open
OPERATION TYPE: Pilot Operating
SEAT SEAL MATERIAL: NBR Diaphragm / NBR Seal
PORT SIZE: ½”
ORIFICE: 12mm
Kv: 65.00 l/min
Pmin-Pmax (bar): 0,5-16 bar
Tmin / Tmax (°C): -10 °C / 80 °C
WEIGHT: 0.640 Kg
COIL VOLTAGE - TOLERANCE: 12,24,220,230V AC/DC
x
Size: 1/2"
2/2
NC
Diaphragm : NBR
Pressure: 0.5- 16 bar
Temperature : -10 to 80 C°
Power supply: 24vdc,24vac,110,220 vac
Valve Manufacture  : Gevax -Turkey
Coil Manufacture  : Amisco -Italy
x
Size: 3/4"
2/2
NO
Diaphragm : NBR
Pressure: 0.5- 16 bar
Temperature : -10 to 80 C°
Power supply: 24vdc,24vac,110,220 vac
Valve Manufacture  : Gevax -Turkey
Coil Manufacture  : Amisco -Italy
x

 Size: 1"

2/2
NC
Diaphragm : NBR
Pressure: 0.5- 16 bar
Temperature : -10 to 80 C°
Power supply: 24vdc,24vac,110,220 vac
Valve Manufacture  : Gevax -Turkey
Coil Manufacture  : Amisco -Italy
x
Size:1.5"
2/2
NC
Diaphragm : NBR
Pressure: 0.5- 10 bar
Temperature : -10 to 80 C°
Power supply: 24vdc,24vac,110,220 vac
Valve Manufacture  : Gevax -Turkey
Coil Manufacture  : Amisco -Italy
x
Size:2"
2/2
NC
Diaphragm : EPDM
Pressure: 0.5- 10 bar
Temperature : -10 to 80 C°
Power supply: 24vdc,24vac,110,220 vac
Valve Manfacture : Gevax -Turkey
Coil Manufacture : Amisco -Italy
x
Size:1/4"
NC
Diaphragm : RUBY
Pressure:0- 40 bar
Temperature : -10-80 C°
Power supply: 24vdc,24vac,110,220 vac
Valve Manfacture : Gevax -Turkey
Coil Manufacture : Amisco -Italy
x
Size:1/2"
NC
Diaphragm : FKM
Pressure: 0.5- 16 bar
Temperature : -10-150 C°
Power supply: 24vdc,24vac,110,220 vac
Valve Manfacture : Gevax -Turkey
Coil Manufacture : Amisco -Italy
x
Size:1"
NC
Diaphragm : FKM
Pressure: 0.5- 16 bar
Temperature : -10-150 C°
Power supply: 24vdc,24vac,110,220 vac
Valve Manfacture : Gevax -Turkey
Coil Manufacture : Amisco -Italy
x
Size:11/2"
2/2
NC
Diaphragm : FKM
Pressure: 0.5- 10 bar
Temperature : -10-150 C°
Power supply: 24vdc,24vac,110,220 vac
Valve Manfacture : Gevax -Turkey
Coil Manufacture : Amisco -Italy
x
Size:2"
2/2
NC
Diaphragm : FKM
Pressure: 0.5- 10 bar
Temperature : -10-150 C°
Power supply: 24vdc,24vac,110,220 vac
Valve Manfacture : Gevax -Turkey
Coil Manufacture : Amisco -Italy
x
Size:1/4"
2/2
NC
Direct acting
 Seales: PTFE
Pressure: 0-100  bar
Temperature :-10-160  C°
Power supply: 24vdc,24vac,110,220 vac
Valve Manfacture : Gevax -Turkey
Coil Manufacture : Amisco -Italy
x
Size :1/4"
3/2
NO
Direct acting
Internal seales:NBR
Pressure: 0-6 bar
Temperature : -10 to 80 C°
Power supply: 24vdc,24vac,110,220 vac
Valve Manufacture  : Gevax -Turkey
Coil Manufacture  : Amisco -Italy
x
Size:3/4"
NC
Piston : PTFE
Pressure: 0.5- 10 bar
Temperature : -10 to 180 C°
Power supply: 24vdc,24vac,110,220 vac
Valve Manfacture : Gevax -Turkey
Coil Manufacture : Amisco -Italy
x
REFERANCE: 1901-KDEB016-015-220AC
MAIN SERIES: General Purpose
FUNCTION: 2/2 Ways
POSITION: Normally Closed
OPERATION TYPE: Direct Acting
SEAT SEAL MATERIAL: EPDM Diaphragm / EPDM Seal
PORT SIZE: ¼”
ORIFICE: 1,5mm
Kv: 1.00 l/min
Pmin-Pmax (bar): 0-16 bar
Tmin / Tmax (°C): -10 °C / 140 °C
WEIGHT: 0.305 Kg
COIL VOLTAGE - TOLERANCE: 12,24,110,220,230V AC/DC
x
REFERANCE: 1901-KHNC010-150-220AC
MAIN SERIES: General Purpose
FUNCTION: 2/2 Ways
POSITION: Normally Closed
OPERATION TYPE: Assisted Lift (Zero Differential Pressure)
SEAT SEAL MATERIAL: NBR Diaphragm / NBR Seal
PORT SIZE: 3/8”
ORIFICE: 15mm
Kv: 65.00 l/min
Pmin-Pmax (bar): 0-10 bar
Tmin / Tmax (°C): -10 °C / 80 °C
WEIGHT: 0.605 Kg
COIL VOLTAGE - TOLERANCE: 12,24,220,230V AC/DC
x
REFERANCE: 1901-KHNE010-200-220AC
MAIN SERIES: General Purpose
FUNCTION: 2/2 Ways
POSITION: Normally Closed
OPERATION TYPE: Assisted Lift (Zero Differential Pressure)
SEAT SEAL MATERIAL: NBR Diaphragm / NBR Seal
PORT SIZE: 3/4”
ORIFICE: 20mm
Kv: 90.00 l/min
Pmin-Pmax (bar): 0-10 bar
Tmin / Tmax (°C): -10 °C / 80 °C
WEIGHT: 0.745 Kg
COIL VOLTAGE - TOLERANCE: 24,220,230V AC
x
REFERANCE: 1901-KHNF010-250-220AC
MAIN SERIES: General Purpose
FUNCTION: 2/2 Ways
POSITION: Normally Closed
OPERATION TYPE: Assisted Lift (Zero Differential Pressure)
SEAT SEAL MATERIAL: NBR Diaphragm / NBR Seal
PORT SIZE: 1”
ORIFICE: 25mm
Kv: 135.00 l/min
Pmin-Pmax (bar): 0-10 bar
Tmin / Tmax (°C): -10 °C / 80 °C
WEIGHT: 1.065 Kg
COIL VOLTAGE - TOLERANCE: 24,220,230V AC
x
REFERANCE: 1901-KBNE016-190-220AC
MAIN SERIES: General Purpose
FUNCTION: 2/2 Ways
POSITION: Normally Closed
OPERATION TYPE: Pilot Operating
SEAT SEAL MATERIAL: NBR Diaphragm / NBR Seal
PORT SIZE: 3/4”
ORIFICE: 19 mm
Kv: 110.00 l/min
Pmin-Pmax (bar): 0,5-16 bar
Tmin / Tmax (°C): -10 °C / 80 °C
WEIGHT: 0.740 Kg
COIL VOLTAGE - TOLERANCE: 12,24,110,220,230V AC/DC
x
REFERANCE: 1811-ABNF016-250-220AC
MAIN SERIES: General Purpose - Low Differential Pressure
FUNCTION: 2/2 Ways
POSITION: Normally Open
OPERATION TYPE: Pilot Operating
SEAT SEAL MATERIAL: NBR Diaphragm / NBR Seal
PORT SIZE: 1”
ORIFICE: 25mm
Kv: 150.00 l/min
Pmin-Pmax (bar): 0,1-16 bar
Tmin / Tmax (°C): -10 °C / 80 °C
WEIGHT: 1.060 Kg
COIL VOLTAGE - TOLERANCE: 12,24,220,230V AC/DC
x
REFERANCE: 4961-KDEB006-020-220AC
MAIN SERIES: Steam Valve
FUNCTION: 2/2 Ways
POSITION: Normally Closed
OPERATION TYPE: Direct Acting
SEAT SEAL MATERIAL: EPDM Diaphragm / EPDM Seal
PORT SIZE: ¼”
ORIFICE: 2mm
Kv: 1.70 l/min
Pmin-Pmax (bar): 0-3 bar
Tmin / Tmax (°C): -10 °C / 140 °C
WEIGHT: 0.111 Kg
COIL VOLTAGE - TOLERANCE: 12,24,220,230V AC/DC
x
REFERANCE: 4911-KBPF010-250-220AC
MAIN SERIES: Steam Valve
FUNCTION: 2/2 Ways
POSITION: Normally Closed
OPERATION TYPE: Pilot Operating
SEAT SEAL MATERIAL: PTFE Piston / PTFE Seal
PORT SIZE: 1”
ORIFICE: 25mm
Kv: 185.00 l/min
Pmin-Pmax (bar): 0,5-10 bar
Tmin / Tmax (°C): -10 °C / 180 °C
WEIGHT: 1.205 Kg
COIL VOLTAGE - TOLERANCE: 12,24,220,230V AC/DC
x
REFERANCE: 1401-KDND040-060-220AC
MAIN SERIES: General Purpose - High Pressure
FUNCTION: 2/2 Ways
POSITION: Normally Closed
OPERATION TYPE: Direct Acting
SEAT SEAL MATERIAL: NBR Diaphragm / NBR Seal
PORT SIZE: ½”
ORIFICE: 6mm
Kv: 10.00 l/min
Pmin-Pmax (bar): 0-40 bar
Tmin / Tmax (°C): -10 °C / 80 °C
WEIGHT: 0.450 Kg
COIL VOLTAGE - TOLERANCE: 12,24,110,220,230V AC/DC
x
Size: 3/8"
2/2
NC
Diaphragm : NBR
Internal seales:NBR
Pressure: 0.5- 16 bar
Temperature : -10 to 80 C°
Power supply: 24vdc,24vac,110,220 vac
Valve Manufacture  : Gevax -Turkey
Coil Manufacture  : Amisco -Italy
x
Size:1/8"
NC
Diaphragm : RUBY
Pressure:0- 30 bar
Temperature : -10-80 C°
Power supply: 24vdc,24vac,110,220 vac
Valve Manfacture : Gevax -Turkey
Coil Manufacture : Amisco -Italy
x

A

B

C

D

E

F

G

H

J

K

L

M

74

46

25

40

35

75

84

103




Description: 1902-KDNB010-020-220AC

REFERANCE:

1902-KDNB010-020-220AC

MAIN SERIES:

General Purpose 3/2

FUNCTION:

3/2 Ways

POSITION:

Normally Closed

OPERATION TYPE:

Direct Acting

SEAT SEAL MATERIAL:

NBR Diaphragm / NBR Seal

PORT SIZE:

¼”

ORIFICE:

2mm

Kv:

1.00 l/min

Pmin-Pmax (bar):

0-10 bar

Tmin / Tmax (°C):

-10 °C / 80 °C

WEIGHT:

0.355 Kg

COIL VOLTAGE - TOLERANCE:

12,24,220,230V AC/DC
x
x

A

B

C

D

E

F

G

H

J

K

L

M

74

46

25

91

35

67

90

104

133




Description: 1801-KBPF040-250-220AC

REFERANCE:

1801-KBPF040-250-220AC

MAIN SERIES:

General Purpose - High Pressure

FUNCTION:

2/2 Ways

POSITION:

Normally Closed

OPERATION TYPE:

Pilot Operating

SEAT SEAL MATERIAL:

PTFE Diaphragm /PTFE Seal

PORT SIZE:

1”

ORIFICE:

25mm

Kv:

165.00 l/min

Pmin-Pmax (bar):

0,5-40 bar

Tmin / Tmax (°C):

-10 °C / 180 °C

WEIGHT:

1.205 Kg

COIL VOLTAGE - TOLERANCE:

12,24,220,230V AC/DC
x

A

B

C

D

E

F

G

H

J

K

L

M



Description: 5801-KBNI005-500-220AC

REFERANCE:

5801-KBNI005-500-220AC

MAIN SERIES:

Solenoid Valves With Exproof Coil

FUNCTION:

2/2 Ways

POSITION:

Normally Closed

OPERATION TYPE:

Pilot Operating

SEAT SEAL MATERIAL:

NBR Diaphragm / NBR Seal

PORT SIZE:

2”

ORIFICE:

50mm

Kv:

0.00 l/min

Pmin-Pmax (bar):

0-0 bar

Tmin / Tmax (°C):

-10 °C / 80 °C

WEIGHT:

0.000 Kg

COIL VOLTAGE - TOLERANCE:


x

A

B

C

D

E

F

G

H

J

K

L

M

74

46

25

54

35

55

67

86

-




Description: 7901-KDVD006-050-220AC

REFERANCE:

7901-KDVD006-050-220AC

MAIN SERIES:

Stainless Steel Valves

FUNCTION:

2/2 Ways

POSITION:

Normally Closed

OPERATION TYPE:

Direct Acting

SEAT SEAL MATERIAL:

FKM(Viton) Diaphragm / FKM(Viton) Seal

PORT SIZE:

½”

ORIFICE:

5mm

Kv:

8.00 l/min

Pmin-Pmax (bar):

0-6 bar

Tmin / Tmax (°C):

-10 °C / 150 °C

WEIGHT:

0.475 Kg

COIL VOLTAGE - TOLERANCE:

12,24,220,230V AC/DC
x

A

B

C

D

E

F

G

H

J

K

L

M

74

46

25

91

35

67

90

114

133

-

-

-


Description: 4911C-KBPF010-250-24DC

REFERANCE:

4911C-KBPF010-250-24DC

MAIN SERIES:

Steam Valve

FUNCTION:

2/2 Ways

POSITION:

Normally Closed

OPERATION TYPE:

Pilot Operating

SEAT SEAL MATERIAL:

PTFE Piston / PTFE Seal

PORT SIZE:

1”

ORIFICE:

25mm

Kv:

18.00 l/min

Pmin-Pmax (bar):

0,5-10 bar

Tmin / Tmax (°C):

-10 °C / 180 °C

WEIGHT:

1.205 Kg

COIL VOLTAGE - TOLERANCE:

12,24,220,230V AC/DC
x
x

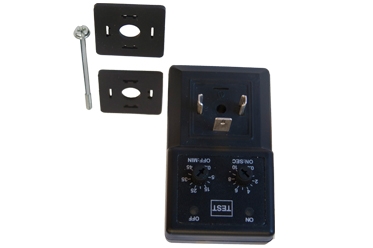

PRESENTATION:
The condensate removal timer is a plug-on controller specially design
for drain valves. The unit offers an easy time cycle programming. The
draining time can be set via the “ON” trimmer between 0.5 and 10
seconds. The “OFF” trimmer allows to adjust the delay time between
two draining cycles from 0.5 to 45 minutes. The unit is ready to
control the valve as soon as the power is switched on. The ON/OFF
sequence will be repeated so long as the unit is fed. Two LED’s
indicate the output status. A “TEST” button is provided to check the
cycle settings and to restart the control sequence from the output
status “ON”.
USE:
Condensate drainage system
Timed systems.
TECHNICAL DETAILED:
Supply voltage: 24 to 240V AC/DC±10% 50/60Hz
Output voltage: same as supply voltage
Load current: max. 1A
Standby current: 8mA max
Operating temp. range: - 40°C to + 60°C
Connector: EN 175301-803 / ISO 4400
Environmental protection: IP65 (assembled with delivered gaskets)
Housing dimensions: 69 x 43 x 21mm
On time: 0.5 to 10 seconds
Off time: 0.5 to 45 minutes
Scale accuracy: ±10%
Indicators: Green LED – On phase;
Red LED – Off phase.
DIMENSIONS:
DESCRIPTION:
MATERIALS:
Shell: ABS-PA 765
Gasket:NBR(nitrile)
ACCESSORIES:
Connectors for EV (to be order separately)
Pg 9 (6÷8mm) or Pg 11(8÷10mm)
1. Push-button TEST
2. Green Led not supplied : output power present (ON)
3. Red Led load supplied : output power absent (OFF)
4. Trimmer "ON": regulation time "ON"
5. Trimmer "OFF": pause time regulation “OFF
Notes
In the near future available also with UL approval.
In accordance with RoHS.


x
a
