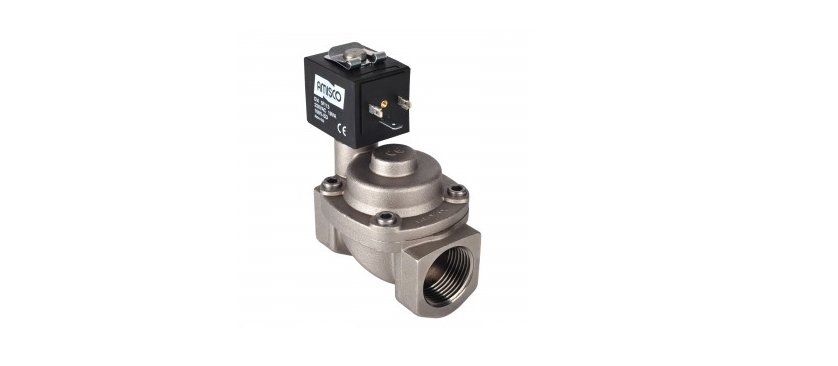

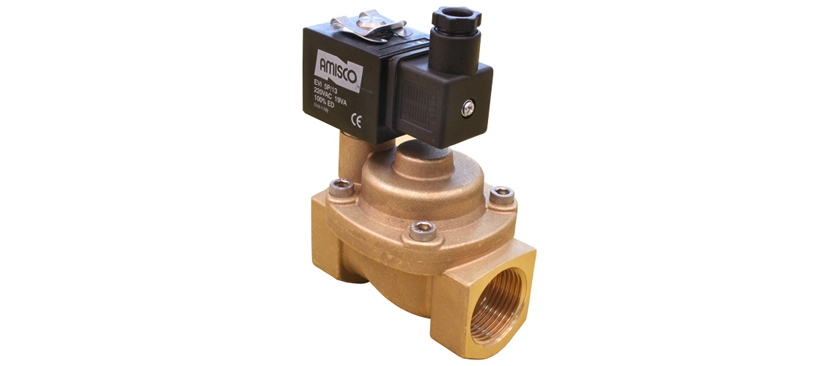

Steam solenoid valves 1/2

REFERANCE:

4911C-KBPF010-250-24DC

MAIN SERIES:

Steam Valve

FUNCTION:

2/2 Ways

POSITION:

Normally Closed

OPERATION TYPE:

Pilot Operating

SEAT SEAL MATERIAL:

PTFE Piston / PTFE Seal

PORT SIZE:

1”

ORIFICE:

25mm

Kv:

18.00 l/min

Pmin-Pmax (bar):

0,5-10 bar

Tmin / Tmax (°C):

-10 °C / 180 °C

WEIGHT:

1.205 Kg

COIL VOLTAGE - TOLERANCE:

12,24,220,230V AC/DC
