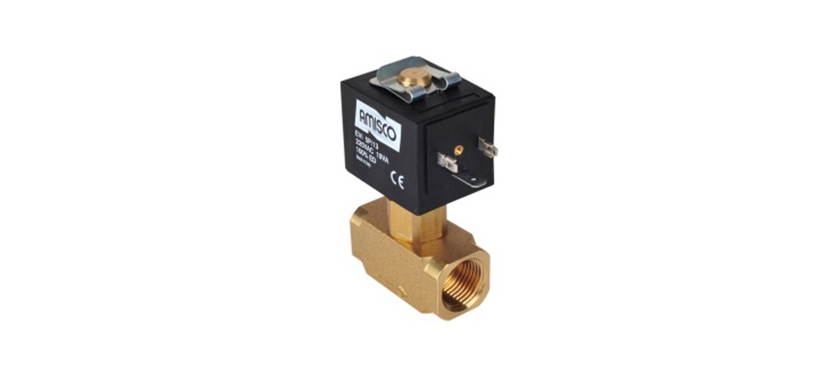

High Pressure valve 1/2


code : 1401-KDND040-060

REFERANCE: 1401-KDND040-060-220AC
MAIN SERIES: General Purpose - High Pressure
FUNCTION: 2/2 Ways
POSITION: Normally Closed
OPERATION TYPE: Direct Acting
SEAT SEAL MATERIAL: NBR Diaphragm / NBR Seal
PORT SIZE: ½”
ORIFICE: 6mm
Kv: 10.00 l/min
Pmin-Pmax (bar): 0-40 bar
Tmin / Tmax (°C): -10 °C / 80 °C
WEIGHT: 0.450 Kg
COIL VOLTAGE - TOLERANCE: 12,24,110,220,230V AC/DC
