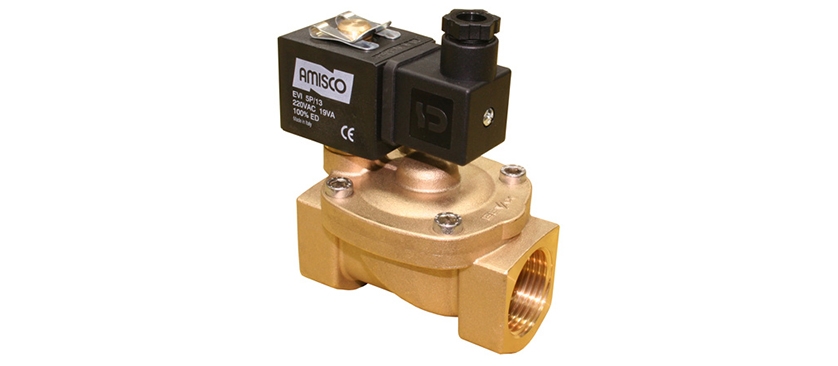

General purpose 3/4
code : 1901-KBNE016-190
| REFERANCE: | 1901-KBNE016-190-220AC |
| MAIN SERIES: | General Purpose |
| FUNCTION: | 2/2 Ways |
| POSITION: | Normally Closed |
| OPERATION TYPE: | Pilot Operating |
| SEAT SEAL MATERIAL: | NBR Diaphragm / NBR Seal |
| PORT SIZE: | 3/4” |
| ORIFICE: | 19 mm |
| Kv: | 110.00 l/min |
| Pmin-Pmax (bar): | 0,5-16 bar |
| Tmin / Tmax (°C): | -10 °C / 80 °C |
| WEIGHT: | 0.740 Kg |
| COIL VOLTAGE - TOLERANCE: | 12,24,110,220,230V AC/DC |
