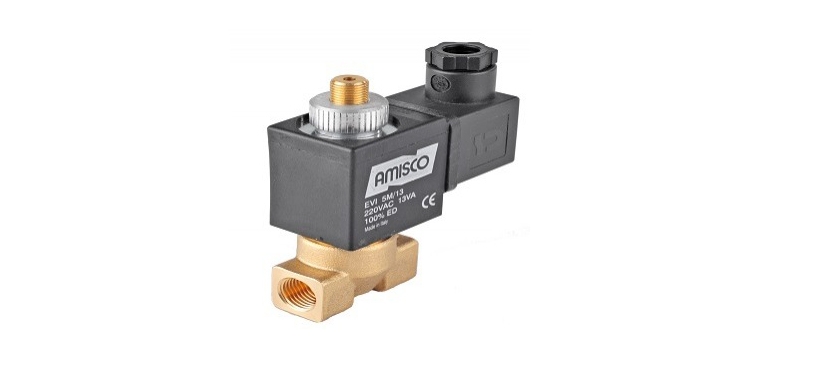

General purpose 3-2 NC

REFERANCE:

1902-KDNB010-020-220AC

MAIN SERIES:

General Purpose 3/2

FUNCTION:

3/2 Ways

POSITION:

Normally Closed

OPERATION TYPE:

Direct Acting

SEAT SEAL MATERIAL:

NBR Diaphragm / NBR Seal

PORT SIZE:

¼”

ORIFICE:

2mm

Kv:

1.00 l/min

Pmin-Pmax (bar):

0-10 bar

Tmin / Tmax (°C):

-10 °C / 80 °C

WEIGHT:

0.355 Kg

COIL VOLTAGE - TOLERANCE:

12,24,220,230V AC/DC
