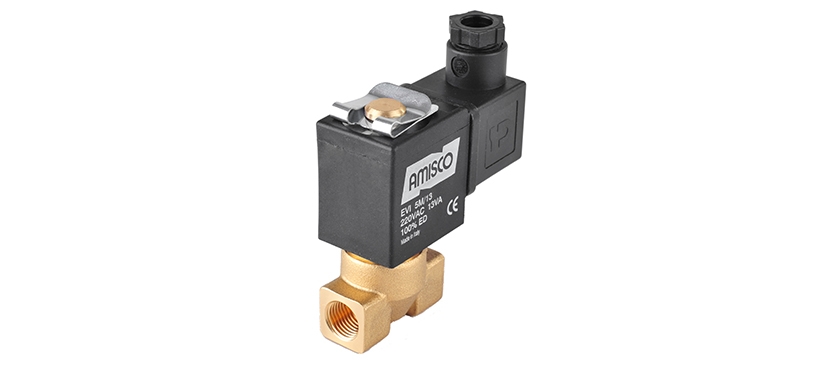

General purpose 1/4
code : 1901-KDEB040-020
| REFERANCE: | 1901-KDEB016-015-220AC |
| MAIN SERIES: | General Purpose |
| FUNCTION: | 2/2 Ways |
| POSITION: | Normally Closed |
| OPERATION TYPE: | Direct Acting |
| SEAT SEAL MATERIAL: | EPDM Diaphragm / EPDM Seal |
| PORT SIZE: | ¼” |
| ORIFICE: | 1,5mm |
| Kv: | 1.00 l/min |
| Pmin-Pmax (bar): | 0-16 bar |
| Tmin / Tmax (°C): | -10 °C / 140 °C |
| WEIGHT: | 0.305 Kg |
| COIL VOLTAGE - TOLERANCE: | 12,24,110,220,230V AC/DC |
