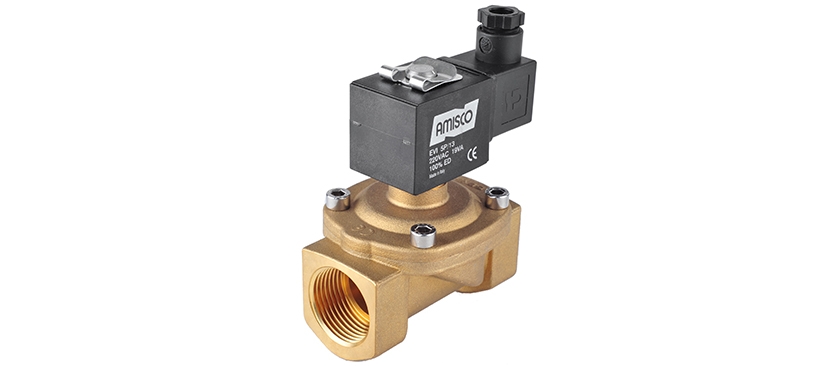

General purpose 1/2
code : 1901-kHNF010-250
| REFERANCE: | 1901-KHNF010-250-220AC |
| MAIN SERIES: | General Purpose |
| FUNCTION: | 2/2 Ways |
| POSITION: | Normally Closed |
| OPERATION TYPE: | Assisted Lift (Zero Differential Pressure) |
| SEAT SEAL MATERIAL: | NBR Diaphragm / NBR Seal |
| PORT SIZE: | 1” |
| ORIFICE: | 25mm |
| Kv: | 135.00 l/min |
| Pmin-Pmax (bar): | 0-10 bar |
| Tmin / Tmax (°C): | -10 °C / 80 °C |
| WEIGHT: | 1.065 Kg |
| COIL VOLTAGE - TOLERANCE: | 24,220,230V AC |
