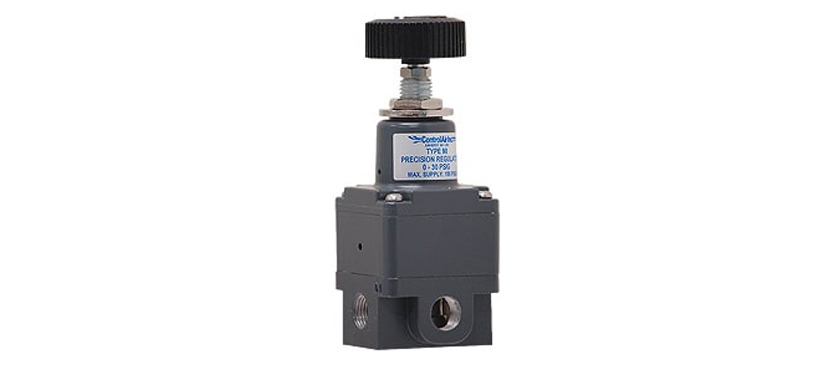

Type 90 Miniature Precision Air Pressure Regulator


code :


This pressure regulator provides the highest level of regulation accuracy and repeatability available in a compact, lightweight housing. A force balanced pilot control maintains output pressure to within 0.05 psig (3.44 millibar) with minimal drift over time. The Type 90 is ideal for applications that require exact pressure control and substantial flow capacity under variable operating conditions and limited space.





Facebook Twitter Google Digg Reddit LinkedIn Pinterest StumbleUpon

Download

Catalogue 1


  • Details
  • Specifications
  • Video

  This pressure regulator provides the highest level of regulation accuracy and repeatability available in a compact, lightweight housing. A force balanced pilot control maintains output pressure to within 0.05 psig (3.44 millibar) with minimal drift over time. The Type 90 is ideal for applications that require exact pressure control and substantial flow capacity under variable operating conditions and limited space.


Flow Capacity

14 scfm (396 Nl/min)

Exhaust Capacity

7 scfm (199 Nl/min)

Sensitivity

0.25" water (6.4mm)

Maximum Supply Pressure

150 psig (10 BAR)

Maximum Supply Sensitivity

0.5 psig (.034 BAR) for a
100 psig (6.9 BAR) change

Air Consumption

6.0 scfh (170 Nl/hr) maximum
at 150 psig (10 BAR) supply

Repeatability

±.3% of span

Approximate Size (inches)

1.38 x 1.38 x 3.88

Approximate Size (mm)

35.1 x 35.1 x 98.5

Temperature Limits

0° F to 160° F (-18° C to 71° C)

Port Size NPT/BSP

1/8 (In, Out, Gauge (2)

Output Ranges

0.7-30 psig (0.05-2 BAR)
1.4-60 psig (0.1-4 BAR)
1.4-120 psig (0.1-8 BAR)

Weight

0.35 lb (0.16 kg)
