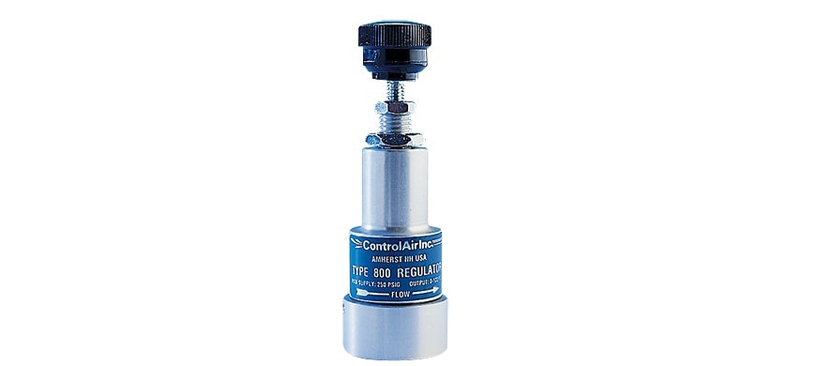

Type 800 Subminiature Precision Pressure Regulator


code :

The Type-800 is a compact air regulator that supplies precise air pressure control for applications where space is limited. This high quality unit, available in five pressure ranges up to 100 psig (6.8 BAR), offers the same dependable performance as ControlAir's larger precision air pressure regulators. An oversized supply valve provides the Type 800 with significantly higher flow capacities than competitive units of similar size. The Type 800 is also available with a variety of convenient port sizes and mounting options. Corrosion resistant materials, lightweight construction and low cost, combine to make the Type 800 ideal for any application where space is at a premium.




Facebook Twitter Google Digg Reddit LinkedIn Pinterest StumbleUpon

Download

Catalogue 1


  • Details
  • Specifications
  • Video

Part
Number

Port Size
(NPT)

Output Range

psi

bar

800-AA

1/16"

0-5

0-0.4

800-AB

1/16"

0-15

0-1

800-AC

1/16"

0-30

0-2

800-AD

1/16"

0-60

0-4

800-AE

1/16"

0-100

0-7

800-BA

M5

0-5

0-0.4

800-BB

M5

0-15

0-1

800-BC

M5

0-30

0-2

800-BD

M5

0-60

0-4

800-BE

M5

0-100

0-7

800-CA

10-32

0-5

0-0.4

800-CB

10-32

0-15

0-1

800-CC

10-32

0-30

0-2

800-CD

10-32

0-60

0-4

800-CE

10-32

0-100

0-7

Part
Number

Port Size
(NPT)

Output Range

psi

bar

800-AA

1/16"

0-5

0-0.4

800-AB

1/16"

0-15

0-1

800-AC

1/16"

0-30

0-2

800-AD

1/16"

0-60

0-4

800-AE

1/16"

0-100

0-7

800-BA

M5

0-5

0-0.4

800-BB

M5

0-15

0-1

800-BC

M5

0-30

0-2

800-BD

M5

0-60

0-4

800-BE

M5

0-100

0-7

800-CA

10-32

0-5

0-0.4

800-CB

10-32

0-15

0-1

800-CC

10-32

0-30

0-2

800-CD

10-32

0-60

0-4

800-CE

10-32

0-100

0-7

Part
Number

Port Size
(NPT)

Output Range

psi

bar

800-AA

1/16"

0-5

0-0.4

800-AB

1/16"

0-15

0-1

800-AC

1/16"

0-30

0-2

800-AD

1/16"

0-60

0-4

800-AE

1/16"

0-100

0-7

800-BA

M5

0-5

0-0.4

800-BB

M5

0-15

0-1

800-BC

M5

0-30

0-2

800-BD

M5

0-60

0-4

800-BE

M5

0-100

0-7

800-CA

10-32

0-5

0-0.4

800-CB

10-32

0-15

0-1

800-CC

10-32

0-30

0-2

800-CD

10-32

0-60

0-4

800-CE

10-32

0-100

0-7

Flow Capacity

5 SCFM (150 Nl/min) at 100 psig (6.8 BAR) supply and 30 psig (2 BAR) set point

Sensitivity

1/2" (12.7mm) water

Exhaust Capacity

0.4 SCFM (12 Nl/min) at a downstream pressure of 10 psig (0.7 BAR) above the set point.

Maximum Supply Pressure

250 psig (17 BAR)

Operating Temperature Limits

-40°F to 160°F (-40°C to 71 °C)

Supply Pressure Variation Effect

Less than 0.1 psig (0.003 BAR) per 5 psig (0.35 BAR) change in supply.

Air Consumption

3.0 SCFH (1.5 Nl/min) maximum at 100 psig supply, 30 psig (2 BAR) set point.

Weight

1.8 oz. (51 grams)

Mounting

Pipe or panel

Porting

1/16" NPT or 10-32 supply and output, #10-32 UNF - gauge M5 - supply, output, and gauge.

Output Pressure Ranges PSIG (bar)

0-5 (0-0.3), 0-15 (0-1), 0-30 (0-2), 0-60 0-4), 0-100 (0-7)

Materials

Anodized aluminum, brass, stainless steel, viton.



Flow Capacity

5 SCFM (150 Nl/min) at 100 psig (6.8 BAR) supply and 30 psig (2 BAR) set point

Sensitivity

1/2" (12.7mm) water

Exhaust Capacity

0.4 SCFM (12 Nl/min) at a downstream pressure of 10 psig (0.7 BAR) above the set point.

Maximum Supply Pressure

250 psig (17 BAR)

Operating Temperature Limits

-40°F to 160°F (-40°C to 71 °C)

Supply Pressure Variation Effect

Less than 0.1 psig (0.003 BAR) per 5 psig (0.35 BAR) change in supply.

Air Consumption

3.0 SCFH (1.5 Nl/min) maximum at 100 psig supply, 30 psig (2 BAR) set point.

Weight

1.8 oz. (51 grams)

Mounting

Pipe or panel

Porting

1/16" NPT or 10-32 supply and output, #10-32 UNF - gauge M5 - supply, output, and gauge.

Output Pressure Ranges PSIG (bar)

0-5 (0-0.3), 0-15 (0-1), 0-30 (0-2), 0-60 0-4), 0-100 (0-7)

Materials

Anodized aluminum, brass, stainless steel, viton.
