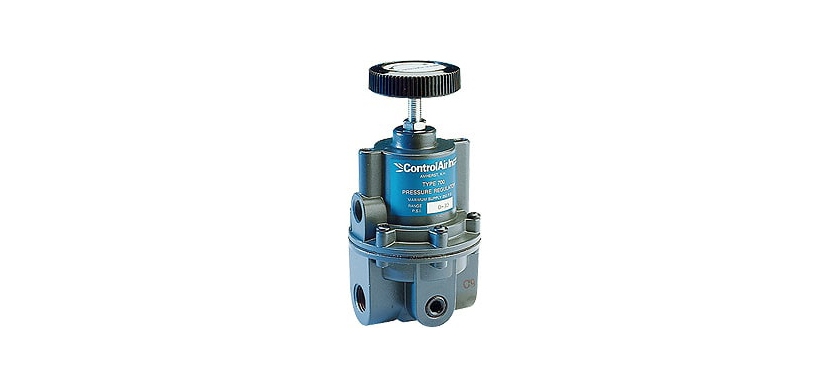

Type 700 High Flow Pressure Regulator


code :

The Type 700 is designed for applications that require high flow capacity and accurate process control. A poppet valve which is balanced by utilizing a rolling diaphragm insures a constant output pressure even during wide supply pressure variations. Stability of regulated pressure is maintained under varying flow conditions through the use of an aspirator tube which adjusts the air supply in accordance with the flow velocity




Facebook Twitter Google Digg Reddit LinkedIn Pinterest StumbleUpon

Download

Catalogue 1


  • Details
  • Specifications
  • Video

Flow Capacity

See Performance Curves

Exhaust Capacity

4 scfm (120 Nl/min) [downstream pressure 5 psi (.35 BAR) above set pressure]

Sensitivity

1/8" (3.2mm) water

Effect of Supply Pressure Variation

less than 0.1 psi (.007 BAR)  for 100 psi (6.7 BAR) change

Air Consumption, Maximum Steady State

Steady State: from 1.0 to 12.5 SCFH (30 to 375 Nl/min), depending on output pressure range

Maximum Supply Pressure

250 psig (17.5 BAR)

Weight

1 Ib, 10 oz (.74 kg)

Mounting

Pipe, panel, or bracket

Port Sizes

1/4", 3/8" or 1/2" NPT/BSP

Output Pressure Ranges

0-2psi, 0-15 ps, 0-30 psi, 1-60 psi, 2-150 psi

Materials

Body: Diecast Aluminum alloy. Internal Components: Stainless steel, brass, plated steel, acetal. Diaphragm: Buna-N elastomer and Polyester fabric. Knob: Phenolic Plastic.

OPTIONS Add proper letter onto end of model number:
C - Check Valve: integral safety device which quickly dumps output pressure when there is a loss of supply air.
E - Tapped Exhaust: allows captured exhaust. 1/4" NPT port.
H - High Bleed: provides more dynamic performance at lower pressure and flow rates.
K - Stainless Steel Knob Stem: stem is stainless steel, knob itself is phenolic plastic
L - Low Bleed: reduces steady state air consumption by 50%.
N - Non-Relieving: for constant flow or downstream pressure relief applications.
S - Stainless Steel Adjust Screw: hex head stainless steel adjust screw for maximum corrosion resistance.
T - Tamperproof Cover: prevents casual adjustment of output pressure.
U - BSP Porting:
X - ATEX 94/9/EC Approval II 2 GD:
ACCESSORIES:
Mounting Bracket: zinc-plated steel bracket for side mounting P/N 446-707-025.
Pressure Gauge: 2" face, back mounted. When specified with the regulator the correct range will be supplied.
Ranges include:
0-15 psig (0-1 BAR) P/N: 446-725-003
0-30 psig (0-2 BAR) P/N: 446-725-004
0-60 PSIG (0-4 BAR) P/N: 446-725-001
0-160 psig (0-11 BAR) P/N: 446-725-002


Flow Capacity

See Performance Curves

Exhaust Capacity

4 scfm (120 Nl/min) [downstream pressure 5 psi (.35 BAR) above set pressure]

Sensitivity

1/8" (3.2mm) water

Effect of Supply Pressure Variation

less than 0.1 psi (.007 BAR)  for 100 psi (6.7 BAR) change

Air Consumption, Maximum Steady State

Steady State: from 1.0 to 12.5 SCFH (30 to 375 Nl/min), depending on output pressure range

Maximum Supply Pressure

250 psig (17.5 BAR)

Weight

1 Ib, 10 oz (.74 kg)

Mounting

Pipe, panel, or bracket

Port Sizes

1/4", 3/8" or 1/2" NPT/BSP

Output Pressure Ranges

0-2psi, 0-15 ps, 0-30 psi, 1-60 psi, 2-150 psi

Materials

Body: Diecast Aluminum alloy. Internal Components: Stainless steel, brass, plated steel, acetal. Diaphragm: Buna-N elastomer and Polyester fabric. Knob: Phenolic Plastic.
