Type 3500/3600 High Pressure Regulator
code :

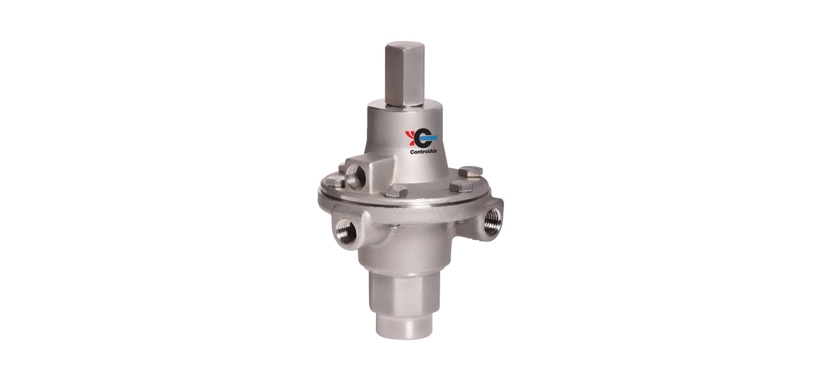

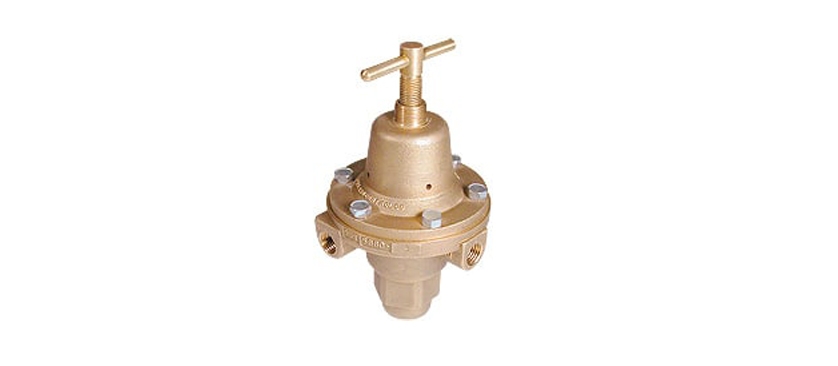

The Type-3500/3600 provides a low cost, dependable regulator to reduce inlet pressures from as high as 6000 psig (413 BAR) down to working pressures ranging between 0 and 225 psig (15.5 BAR). This first cut regulator is available in three separate spring ranges. The Type-3500 is of brass construction and the Type-3600 is constructed of 316 Stainless Steel. These versatile devices can be used as pilot supply where a high-pressure operating valve must be controlled by a gas regulator pilot. The Type-3500 is designed for use with noncorrosive gases. The Type-3600 is designed to conform to NACE MR-0175.
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
