Small Bore Cylinders


code :

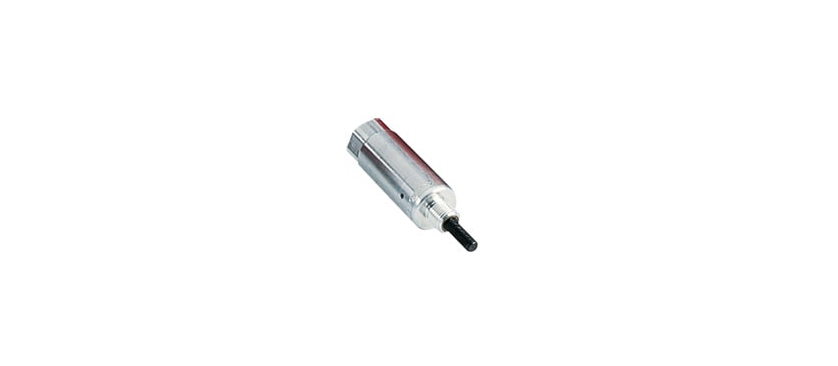

ControlAir's Diaphragm Air Cylinders are also available in miniature versions. Small Bore models are based on the unique rolling diaphragm principle that virtually eliminates friction. The fact that there is no stiction or blow-by of any kind permits uncompromising accuracy and repeatability.




Facebook Twitter Google Digg Reddit LinkedIn Pinterest StumbleUpon

Download

Catalogue 1


  • Details
  • Specifications
  • Video

Mini Mights Performance Specifications


Specifications

MM-1
349-180-007

MM-2
349-180-009

Stroke

0.70

0.70

Effective Pressure Area

0.384 sq. in.

0.384 sq. in.

Bore

0.7

0.7

Spring Load ('0" Stroke)

2 lbs.

2 lbs.

Spring Load (Max Stroke)

7 lbs.

7 lbs.

Max Operating Pressure

125 psi

125 psi

Mini Mights Physical Specifications

Dimensions

MM-1
349-180-007

MM-2
349-180-009

L

2.81"

2.81"

N

0.438"

0.438"

W

15/16"

15/16"

D

7/8"

7/8"

Nose Mount Thread Size

1/2"-20 UNF

1/2"-20 UNF

Rod Diameter

1/4"

1/4"

Rod Extension

Flush

3/4"

Rod Thread

-

1/4"-28 UNF

Pipe Connection

1/8"-27 NPSF

1/8"-27 NPSF

Low Cost Cylinders Performance Specifications


Specifications

Part No.
139-190-002

Part No.
139-190-001

Stroke

1"

1 3/4"

Effective Pressure Area

1.7 in.2

1.7 in.2

Dimension A

2 29/32"

3 21/32"

Bore Equivalent

1.5"

1.5"

Spring Load ("0" Stroke)

4 lbs.

4 lbs.

Spring Load (Max. Stroke)

8 lbs.

11 lbs.

Max Operating Pressure

125 psi

125 psi

Mounting Hole Sizes

1/4" -20 UNC

1/4" -20 UNC
