5-3 namur solenoid valve

code :

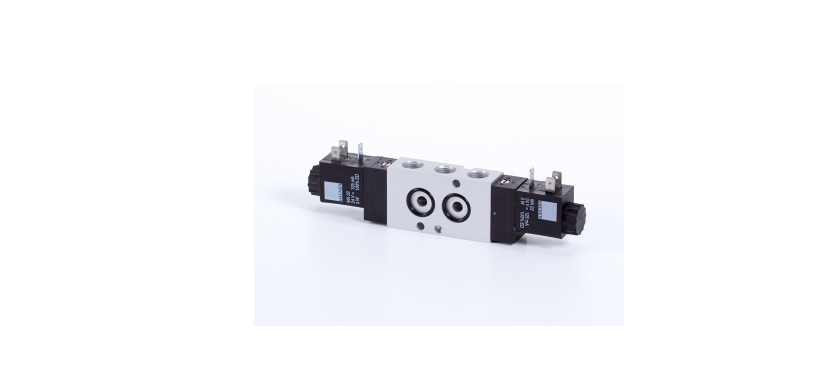

Solenoid valve with NAMUR interface | spring return to middle position | with manual override | centre closed

Catalogue 1

Type number	Port size	Air flow	Operating pressure	Funktion	Power consumption	Interface	Datasheet
MNH 531 701	G 1/4"	1250 l/min	3...10 bar	5/3-way \| centre closed	3 W / 5 VA	NAMUR [1/4"]	Datasheet »
MNH 531 101	G 3/8"	2250 l/min	1,5...10 bar	5/3-way \| centre closed	3 W / 5 VA	NAMUR [1/4"]	Datasheet »
MNH 531 121	G 1/2"	3000 l/min	1...10 bar	5/3-way \| centre closed	3 W / 5 VA	NAMUR [1/2"]	Datasheet »
MNH 531 701 NPT	G 1/4"	1250 l/min	3...10 bar	5/3-way \| centre closed	3 W / 5 VA	NAMUR [1/4"]	Datasheet »
MNH 531 121 NPT	G 1/2"	3000 l/min	1...10 bar	5/3-way \| centre closed	3 W / 5 VA	NAMUR [1/2"]	Datasheet »

Request Now
