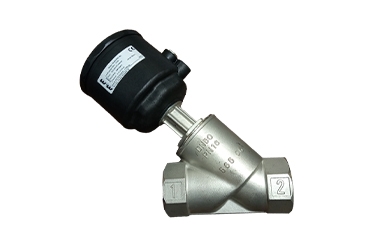

Media: water, oil, air, aggressive media and steam(1)
Media temperature: -10°C … +180°C
Ambient temperature: -10°C … +60°C
Pilot media: air, inert gases, water
Body material: cast AISI 316L (ASME SA351/351M GRADE CF3M)
Bonnet material: cast AISI 316L (ASME SA351/351M GRADE CF3M)
Actuator body material: Polyamide PA6 (reinforced fiberglass 30%)
Seal material: PTFE
Position indicator as standard
x

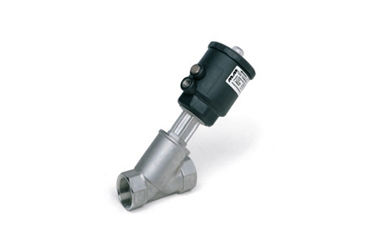

Media: water, oil, air, aggressive media and steam(1)
Media temperature: -10°C … +180°C
Ambient temperature: -10°C … +60°C
Pilot media: air, inert gases, water
Body material: cast AISI 316L (ASME SA351/351M GRADE CF3M)
Bonnet material: cast AISI 316L (ASME SA351/351M GRADE CF3M)
Actuator body material: Polyamide PA6 (reinforced fiberglass 30%)
Seal material: PTFE
Position indicator as standard
x

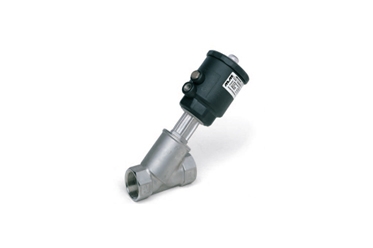

Media: water, oil, air, aggressive media and steam(1)
Media temperature: -10°C … +180°C
Ambient temperature: -10°C … +60°C
Pilot media: air, inert gases, water
Body material: cast AISI 316L (ASME SA351/351M GRADE CF3M)
Bonnet material: cast AISI 316L (ASME SA351/351M GRADE CF3M)
Actuator body material: Polyamide PA6 (reinforced fiberglass 30%)
Seal material: PTFE
Position indicator as standard
x

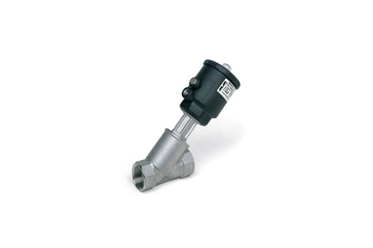

Media: water, oil, air, aggressive media and steam(1)
Media temperature: -10°C … +180°C
Ambient temperature: -10°C … +60°C
Pilot media: air, inert gases, water
Body material: cast AISI 316L (ASME SA351/351M GRADE CF3M)
Bonnet material: cast AISI 316L (ASME SA351/351M GRADE CF3M)
Actuator body material: Polyamide PA6 (reinforced fiberglass 30%)
Seal material: PTFE
Position indicator as standard
x



Media: water, oil, air, aggressive media and steam(1)
Media temperature: -10°C … +180°C
Ambient temperature: -10°C … +60°C
Pilot media: air, inert gases, water
Body material: cast AISI 316L (ASME SA351/351M GRADE CF3M)
Bonnet material: cast AISI 316L (ASME SA351/351M GRADE CF3M)
Actuator body material: Polyamide PA6 (reinforced fiberglass 30%)
Seal material: PTFE
Position indicator as standard
x

Standard isolating duty

CK isolating duty actuators are designed for on / off valve types that are infrequently operated.

  • Shut off valves to isolate the site process
  • Safety valves for maintenance activities
  • Up to 60 starts per hour at a rate up to 1 start every 6 seconds


x
x
x

Standard regulating / modulating duty



CKr modulating duty actuators are designed for positioning valve types that are frequently operated.

  • Control valves for fine adjustment of the site process flow
  • Optimised fast response drive train
  • Up to 1,200 starts per hour


x

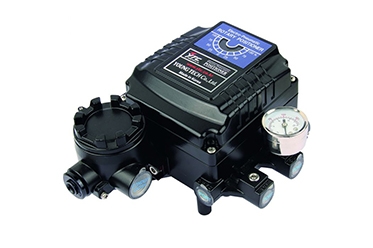

Smart positioner
Model: YT-3100-R-D-N-5-2—1-1-S
Used with Rotary pneumatic actuators (quarter turn)
Input signal: 4-20 mA
Output feedback signal: 4-20 mA
Manufacture : YTC - Rotork
x
Model:  YT-1000RDN533S00
Electro-pneumatic positioner
Input: 4-20 mA
Complete with gauges and brackets
Manufacture : YTC - Rotork
x

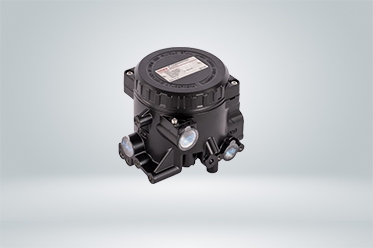

YT930 IP Converter accurately provides equipments with relevant air pressure, according to input signal of 4~20mA being delivered from the controller.

  • High accuracy and sensitivity
  • Simple zero and span adjustment
  • Feedback Signal (Option)
  • Analog PID Control
  • Tubeless connection of YT-200, Air Regulator
  • Explosion Proof
  • No effect from mounting orientation
x

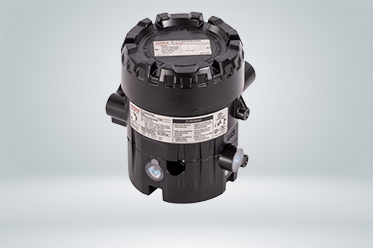

YT940 IP Converter accurately provides equipments with relevant air pressure, according to input signal of 4~20mA being delivered from the controller.

  • High accuracy and sensitivity
  • Simple zero and span adjustment
  • Feedback Signal (Option)
  • Analog PID Control
  • Tubeless connection of YT-200, Air Regulator
  • Explosion Proof
  • No effect from mounting orientation
x

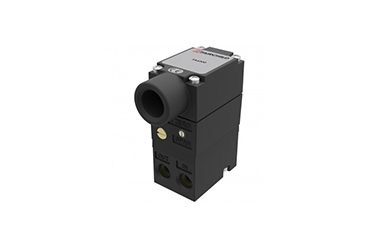

  • Manufacturer: Fairchild Products

  • Product Type: Electro-Pneumatic Transducer

  • Accuracy: ±0.75% Full Scale

  • Action Type: Field Reversible

  • Air Connection: 1/4 in. FNPT Threaded x 1/4 in. FNPT Threaded

  • Air Flow Rate: 11 SCFM @ 150 PSIG Supply

  • Body Material: Aluminum

  • Electrical Connection: DIN43650 Connection

  • Input Signal: 0-10 VDC

  • Input Type: Voltage

  • Mounting Method: DIN Rail - Mount Kit 16893 (Included), Flat Surface - (2) #10-32 TPI Screw, Panel/Wall - 16799-1 Mount Kit (Included)

  • Output Signal: 0-120 psig

  • Output Type: Pressure

  • Temperature Range: -20°F to 150°F
