Electrical Actuator

Standard isolating duty

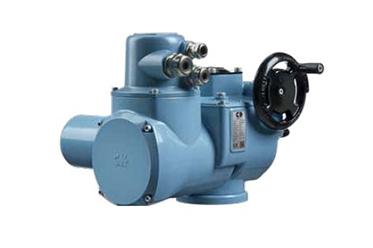

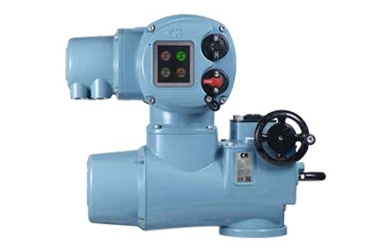

CK isolating duty actuators are designed for on / off valve types that are infrequently operated.

• Shut off valves to isolate the site process
• Safety valves for maintenance activities
• Up to 60 starts per hour at a rate up to 1 start every 6 seconds

Standard regulating / modulating duty

CKr modulating duty actuators are designed for positioning valve types that are frequently operated.

• Control valves for fine adjustment of the site process flow

• Optimised fast response drive train

• Up to 1,200 starts per hour

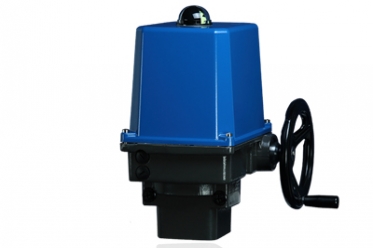

 PSQ-E150/230VAC/50-60Hz/39W/150Nm/23/F05+F07

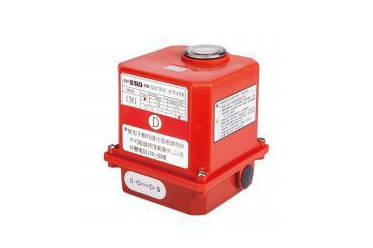

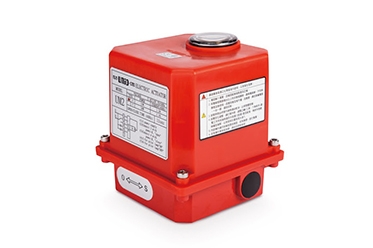

Electrical Actuator : UMD series __  It can control the opening of valve by voltage, current, or temperature.

Torque:36 Nm

Power supply：

Single-phase power AC110V~120V/AC200V~250V 50/60Hz DC24V

3-phase power AC220V/AC380V/AC440V

The voltage can be customized.

Input Signal (Standard)：4~20mA   _  2~10VDC

Output Signal：4~20mA

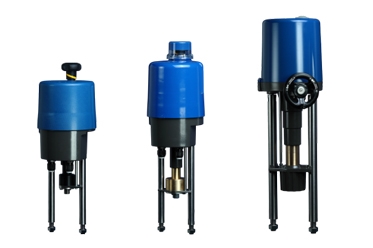

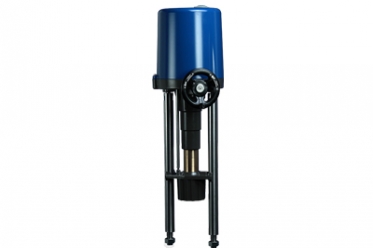

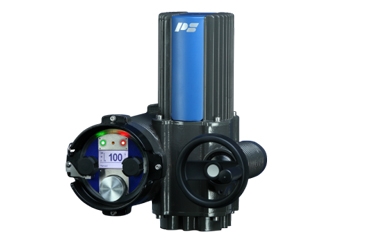

The cover and switching mechanism design of the PSL valve actuators for a wider range of applications, with more space for electronics and reduced cost. The PSL valve actuators fulfil all requirements for control valve actuators with remarkable efficiency.
They position precisely, are very robust, reliable with long life, even at high loads. The individual components are of high quality and correspond to the harmonised European standards for machines and electrical equipment. The basic adjustment of a PSL actuator on a valve is simple due to the central arrangement of the switching and sensor units, which are easily accessible. Optional accessories are quickly retrofittable due to the unique, perfected modular design.
Our customers who use the PSL linear actuators profit from the unified modular concept of the accessories in several ways: There are fewer parts which need to be held in stock and the training for the sales, service and assembly personnel is reduced considerably

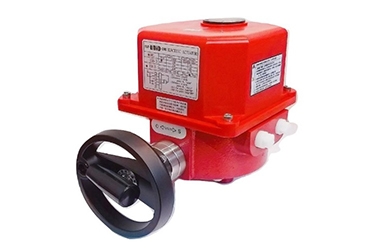

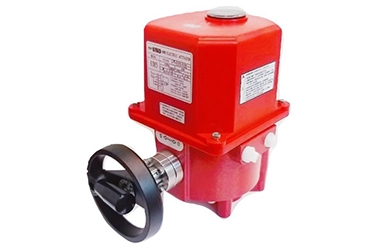

Electrical Actuator : UMD series __  It can control the opening of valve by voltage, current, or temperature.

Torque: 70Nm

Power supply：

Single-phase power AC110V~120V/AC200V~250V 50/60Hz DC24V

3-phase power AC220V/AC380V/AC440V

The voltage can be customized.

Input Signal (Standard)：4~20mA   _  2~10VDC

Output Signal：4~20mA

Electrical Actuator : UMD series __  It can control the opening of valve by voltage, current, or temperature.

Torque: 156 Nm

Power supply：

Single-phase power AC110V~120V/AC200V~250V 50/60Hz DC24V

3-phase power AC220V/AC380V/AC440V

The voltage can be customized.

Input Signal (Standard)：4~20mA   _  2~10VDC

Output Signal：4~20mA

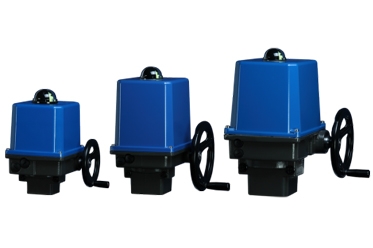

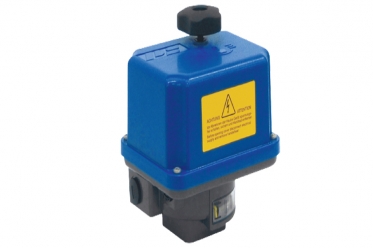

The compact PSQ quarter-turn actuators of PS Automation are available from 50 Nm up to 1500 Nm torque. Different stroke options are available e.g. 90°, 180° or others. They are even available with continuous rotation upon request.
They are mature and proven, very robust and completely maintenance free. Since entering the marketing 15 years ago, gear damages by wear have not occurred under normal operation. This is why we can assume that a PSQ lasts as long as the valve. When buying a PSQ from PS Automation, the specialist for valve actuators, the only thing to consider is the reasonable price as well as the running costs. There are no maintenance costs!
For the PSQ-E series we use a very economic manufacturing method and a very efficient overriding drive in order to enable robustness at low cost. The valve is protected by using torque limited motors with thermo switches instead of torque switches. You can chose between two different torques and five different operating voltages. The standard equipment includes two potential-free change-over contacts which are preset to 90° travel to signalize the end positions. Optionally, you and your customers in the shop floors or at the construction site can retrofit a heating, a potentiometer as well as a mA position transmitter in two- or three-wire technology.
The new PSQ-E – the efficient quarter-turn actuator with more than 20% price advantage compared to our proven PSQ!

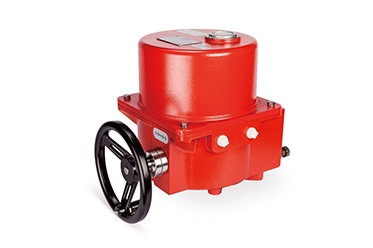

Electrical Actuator : UMD series __  It can control the opening of valve by voltage, current, or temperature.

Torque: 488 Nm

Power supply：

Single-phase power AC110V~120V/AC200V~250V 50/60Hz DC24V

3-phase power AC220V/AC380V/AC440V

The voltage can be customized.

Input Signal (Standard)：4~20mA   _  2~10VDC

Output Signal：4~20mA

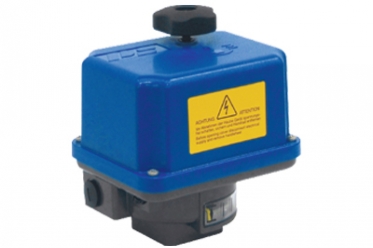

The quarter-turn actuator series PSR-E is the economical addition to the proven actuator series PSQ for torque requirements from 25 Nm to 50 Nm, directly mounted as per ISO 5211. PSR-E series is containing a maintenance-free, low-wear and low-noise spur gear resulting in high efficiency and long lifetime. The PSR-E series with various operating times is most suitable for control operation due to the use of synchronous motors without after-run.
Customers who use the PSQ quarter-turn and PSL linear actuators profit from a standardisation of the modular accessories in several ways, as fewer parts must be held in stock and the training requirements for the sales, service and assembly staff are reduced considerably


Electrical Actuator : UMD series __  It can control the opening of valve by voltage, current, or temperature.

Torque: 930 Nm

Power supply：

Single-phase power AC110V~120V/AC200V~250V 50/60Hz DC24V

3-phase power AC220V/AC380V/AC440V

The voltage can be customized.

Input Signal (Standard)：4~20mA   _  2~10VDC

Output Signal：4~20mA

PSQ-AMS is the patented smart actuator solution up to 1000 Nm torque for modulating control valve applications. PSQ-AMS includes enhanced electronics with an embedded micro-controller with flash memory that controls and monitors the entire actuator function. Summarizing all functions on a single circuit board makes the actuator extremely compact and safe in operation. The value for money is outstanding.
