Ball valves

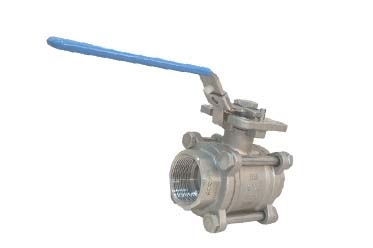

Stainless steel  316 - ball valve - Manual -All Sizes -  Threaded -2 way

Stainless steel  316 - ball valve - Manual - ِِAll Sizes -  Threaded - 2 way

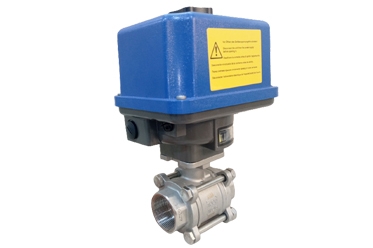

Electrical Actuators :
The compact PSQ quarter-turn actuators of PS Automation are available from 50 Nm up to 2800 Nm torque. Different stroke options are available e.g. 90°, 180° or others. They are even available with continuous rotation upon request

-  ball valve ِِ All Sizes -  PVC - 2 way

Electrical Actuators :
The compact PSQ quarter-turn actuators of PS Automation are available from 50 Nm up to 2800 Nm torque. Different stroke options are available e.g. 90°, 180° or others. They are even available with continuous rotation upon request

Stainless steel  316 - ball valve ِِ All Sizes -  Threaded - 2 way

Stainless steel  316 - ball valve - Manual   ِِAll Sizes -  Threaded - 2 way

Stainless steel  316 - ball valve - Manual   ِِAll Sizes -  Threaded - 3 way

-ball valve - Manual   ِِAll Sizes -  PVC - 2 way

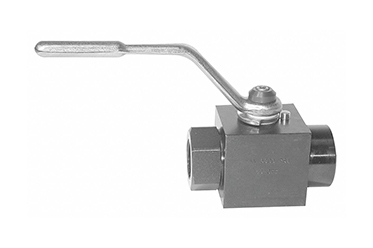

CARBON STEEL

• Type: ball valve 2 way
• Material: 1,0737
• Sizes: from DN6 up to DN13
• Ends: BSP-NPT-SAE
• O-Rings: NBR
• High Pressure: up to PN500
• Temp range: -20°C to +100°C

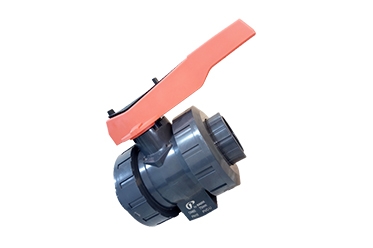

 PVC Ball Valve

 Size:  All sizes available

Body & Disc: PVC-U

Reliably sealed – inside and out
Ball valves are modern shut-off valves which are very reliable in operation. The circular bore guarantees a flow characteristic which is similar to a pipe. As there is no shut-off device in the flow, ball valves with full bore are piggable without any problems.
Due to the usage of standardised mounting flanges, the optimizing of operating torques and the high compatibility to different actuator designs and makes, our ball valves keep up with the increasing of automated production processes and the requirement of remote-controlled industrial facilities.

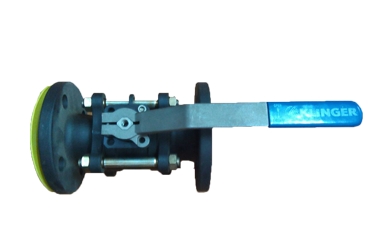

KLINGER Fluid Control offers five product ranges of ball valves which differ in three main features: nominal width range, construction and available end connection. The table below provides an overview on the available product ranges:

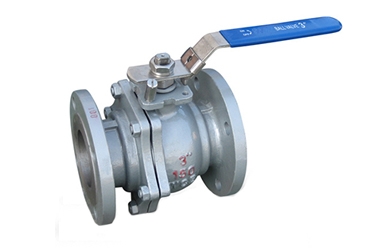

2/2 way compact flange ball valve in stainless steel used to shut off medium flows. DN15 -DN150
• Manually operated
• Low torques
• Long lifespan
• Maintenance friendly
• High flow rate

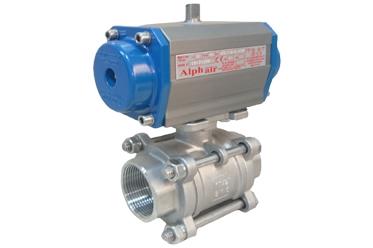

2/2-way ball valve in stainless steel for separating medium flow. The ball valves can be connected via the mechanical interface acc. to ISO 5211 with a pneumatic or electric rotary actuator– low torques – high flow rates – high medium pressure – long lifespan – maintenance friendly
• Stainless steel ball valve
• High flow rates
• High medium pressure
• Long life
• ISO 5211 Top flange


Ball valves: A complete range of ball valves in various materials (PVC-U, PVC-C) that incorporate the “Antiblock” system that prevents the blocking of the ball. Maximum quality to satisfy the most demanding customers.

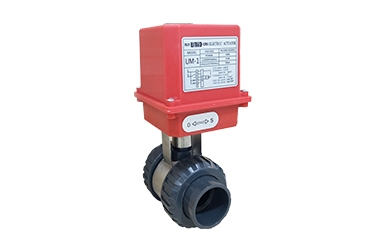

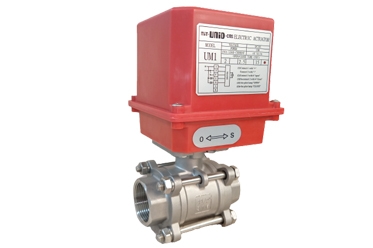

Electrical Actuator : UMD series __  It can control the opening of valve by voltage, current, or temperature.

Power supply：

Single-phase power AC110V~120V/AC200V~250V 50/60Hz DC24V

3-phase power AC220V/AC380V/AC440V

The voltage can be customized.

Input Signal (Standard)：4~20mA   _  2~10VDC

Output Signal：4~20mA

Electrical Actuator : UMD series __  It can control the opening of valve by voltage, current, or temperature.

Power supply：

Single-phase power AC110V~120V/AC200V~250V 50/60Hz DC24V

3-phase power AC220V/AC380V/AC440V

The voltage can be customized.

Input Signal (Standard)：4~20mA   _  2~10VDC

Output Signal：4~20mA

Stainless steel  316 - ball valve ِِ All Sizes -  Threaded - 2 way

Electrical Actuator : UMD series __  It can control the opening of valve by voltage, current, or temperature.

Power supply：

Single-phase power AC110V~120V/AC200V~250V 50/60Hz DC24V

3-phase power AC220V/AC380V/AC440V

The voltage can be customized.

Input Signal (Standard)：4~20mA   _  2~10VDC

Output Signal：4~20mA

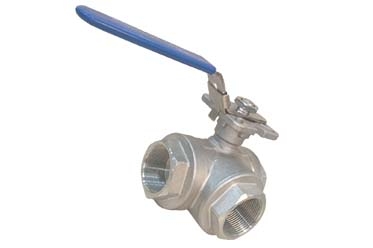

Stainless steel  316 - ball valve - Manual –  ِِAll Sizes -  Threaded - 3 way
