Series 2000 positioner


الكود : CA20-05-R-0-C1-A

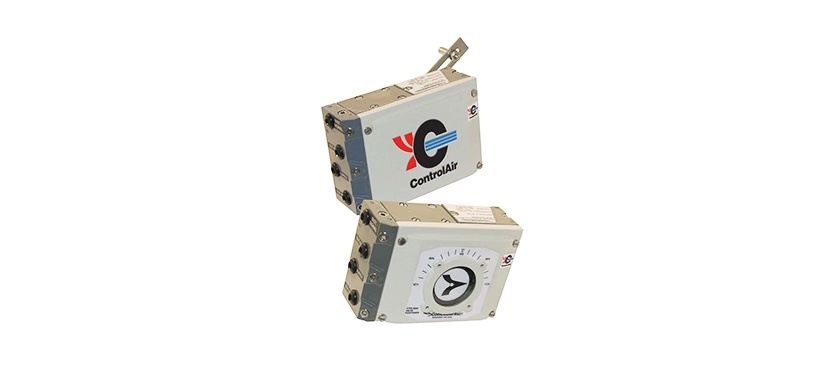

The Type-2000 Pneumatic and Electro-Pneumatic Valve Positioners are designed to provide stable and accurate control of rotary and linear valves. These force balanced devices are operated with cam characterized air pressure control utilizing a low friction spool valve to accurately drive rotary and linear pneumatic actuators. The force balanced instruments are simple, reliable and user friendly for calibration, maintenance and field upgrades.
The electro-pneumatic unit is available with worldwide safety approvals in an Intrinsically Safe and Explosion-proof version. The NEMA-4X (IP 66) housing provides rugged resistance to severe industrial environments. The modular design of the Type-2000 allows multiple feature ordering options or easy field conversions.




Facebook Twitter Google Digg Reddit LinkedIn Pinterest StumbleUpon

تحميل

كتالوج 1


  • التفاصيل
  • المواصفات
  • الفيديو

Type-2000

Pneumatic (CA2000)

Electro-Pneumatic
(CA2005/CA2010/CA2011)

Input Signal

3-15 PSI (0.2-1.0 Bar)

4-20 mA (Ri<250 ohms)

Supply Pressure

<145 PSI (<10 Bar)

21.8-145 PSI (1.5-10 Bar)

Linearity Error

<0.7% f.s

<1.0% f.s

Hysteresis

<0.4% f.s

<0.6% f.s

Repeatability

<0.3% f.s

<0.5% f.s

Pressure Gain

750 P out/P in

750 P out/P in

Flow Capacity
@29 PSI (2.0 Bar)
@87 PSI (6.0 Bar)
@145 PSI (10 Bar)

SCFM
9.5
28.3
47.1

NI/min
268.9
800.1
1333

SCFM
9.5
28.3
47.1

Nl/min
268.9
800.1
1333

Air Consumption
@29 PSI (2.0 Bar)
@87 PSI (6.0 Bar)
@145 PSI (10 Bar)

SCFM
.18
.53
.88

NI/min
5.09
424.5
707.5

SCFM
0.2
0.6
1.0

Nl/min
5.7
17.0
28.3

Impedence



260 Ohms @ 70°

Loop Load



5.2 Volts @ 70°F

Temperature Range

-40° to 185° F (-40° to 85° C)

Port Sizes

Pneumatic: 1/4" NPT; Gauge Ports - 1/8" NPT
Electric: 1/2" NPT; M20-1.5 (ATEX)

Media

Clean, dry, oil-free instrument air, filtered to 40 micron

Enclosure

Nema 4X / IP66 aluminum with polyester epoxy finish

Weight

3.5 lbs (1.6 kg)
5.1 lbs (2.3 kg)

3.8 lbs (1.7 kg) CA2005/CA2010/CA2011
5.4 lbs (2.5 kg) CA2005 with feedback
4.8 lbs (2.2 kg) CA2020/CA2011
