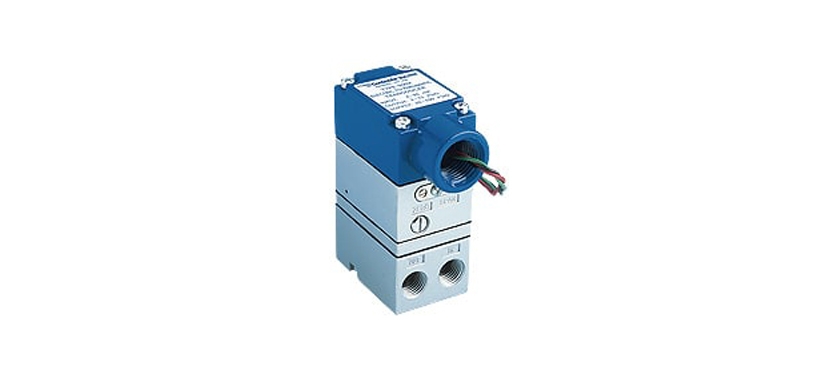

T900X Miniature I/P, E/P Transducer for Electronic Air Pressure Control


الكود :

The Type-9OOX l/P, E/P transducers are a series of compact electronic pressure regulators that convert an electrical signal (current or voltage) to a proportional pneumatic output. Utilizing internal solid-state feedback circuitry, the Type-9OOX provides precise, stable pressure outputs to final control elements. Immunity to the effects of vibration or mounting position, high tolerance to impure air, and low air consumption make this unit ideal for use in demanding applications.
The heart of this unique technology is a bimorph piezo actuator that is encapsulated in a protective skin. This protective skin provides defense against the humidity and contaminants often d in process operating environments





Facebook Twitter Google Digg Reddit LinkedIn Pinterest StumbleUpon

تحميل

كتالوج 1


  • التفاصيل
  • المواصفات
  • الفيديو

Inputs

4-20mA,0-10 VDC, 1-9 VDC, 0-5 VDC, 1-5 VDC

Outputs

1-17 psig
0.07-1.20 BAR

3-15 psig -
0.20-1.00 BAR

3-27 psig
0.20-1.80 BAR

6-30 psig
0.40-2.00 BAR

2-60 psig
0.20- 4.00 BAR

2-100 psig
0.14 - 6.70 BAR

Air Consumption

1.5 scfh (0.11 m3/hr)
at mid range typical

4.5 scfh (0.16 m3/hr)
at mid range typical

Supply Pressure

Note: Supply pressure must be a minimum of 5 psig above maximum ouput

100 psig (7.0 BAR) maximum

60 psig (4.00 BAR) maximum
for 1-17 psig output unit

130 psig (8.7 BAR) maximum

Flow Capacity at mid-range

4.5 scfm (7.6 m3/hr)
at 25 psig (1.7 BAR) supply

12.0 scfm (20.0 m3/hr)
at 100 psig (7.0 BAR) supply

20.0 scfm (34.0 m3/hr)
at 150 psig (10.0 BAR) supply

Temperature Limits

Operating:
-40° to +160° F
(-40° to +71° C)

Storage:
-40° to + 200° F
(-40° to + 93° C)

Loop Load, I/P Transducer

9.5 VDC @ 20mA



Supply Voltage, E/P Transducer

7-30 VDC, less than 3mA



Signal Impedance E/P Transducer

10 Kilohms



Accuracy, Hysteresis, and Repeatability

+ or - 0.10% of span

Deadband

0.02% of span

Position Effect

No measurable effect

Vibration Effect

Less than ±1.0% of span under the following conditions: 5-l5Hz @ 0.8 inches constant displacement; 15-500Hz @ l0g's

Supply Pressure Effect

No measurable effect

Temperature Effect

+ or - 0.045% / oF (0.07% / oC) of span

Reverse Polarity Effect

No damage occurs from reversal of normal supply current (4-20mA) or from misapplication of up to 60mA

RFI/EMI Effect

See section 1.8 of Instruction Manual

Electrical Connections
Conduit 1/2" NPT (A), DIN 43650 (D), M12 (M), Terminal Block (T)

Port Sizes

Pneumatic...........l/4"NPT
Electric...............l/2" NPT

Media

Clean, dry, oil-free, air filtered to 40 micron

Mounting

Direct wall, panel, 2" pipe, or DIN rail (optional)

Materials

Housing: Chromate treated aluminum with epoxy paint. NEMA-4X (IP65). Elastomers: Buna-N. Trim: Stainless steel, brass, zinc plated steel

Weight

13.0 oz. (0 4 kg)
