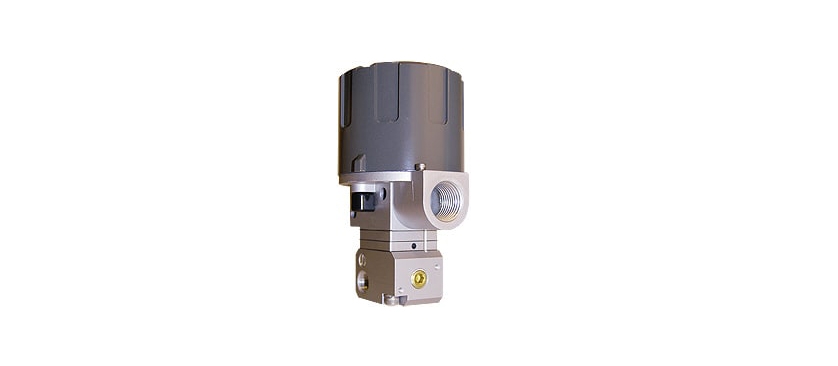

T595XP Explosion-Proof I/P Transducer


الكود :

The Type-595XP Explosionproof I/P (current to pressure) transducer converts a 4–20mA electrical current signal to a proportionally linear pneumatic output. The unique conversion technology utilizing open loop control provides a high level of accuracy and repeatability for the operation of actuated valves. A low mass control circuit provides consistent output in high vibration applications.
This compact unit is housed in an explosion proof enclosure that is designed for pipe, bracket or direct manifold mounting. This explosion-proof and intrinsically safe field device is available with an integral volume booster or as a low-flow signal converter that directly mounts to a pneumatic valve positioner. The Type-595XP has worldwide agency approvals for use in hazardous areas.
Multiple choices for wiring and porting simplify installation and decrease the time required to do so. In addition to standard wall, panel or pipe mounting, optional DIN rail and manifold mounting kits are available. The ControlAir Type-925 Multifunction Manifold provides a common supply port and individual shutoff valves for sets of 3, 5, 10 or 15 units.





Facebook Twitter Google Digg Reddit LinkedIn Pinterest StumbleUpon



  • التفاصيل
  • المواصفات
  • الفيديو



Description: T595-P

Description: T595-M,N



P Connection (with Flow Booster)

M & N Connection (without Flow Booster)

Inputs

4-20 mA

4-20 mA

Outputs

3-15 psig

0.20-1.0 BAR

3-27 psig

0.20-1.8 BAR

6-30 psig

0.40-2.0 BAR

3-15 psig

0.20-1.0 BAR

3-27 psig

0.20-1.8 BAR

6-30 psig

0.40-2.0 BAR

Air Consumption

0.1 scfm (0.17m3/hr)

2.00 scfh (0.06 m3/hr) @
20 psig supply (1.4 BAR)

4.94 scfh (0.14 m3/hr) @
85 psig supply (6.0 BAR)

8.36 scfh (0.24 m3/hr) @150 psig supply (10.0 BAR)

Supply Pressure
Note: Supply pressure must be a minimum of 5 psig (0.3 BAR) above maximum output

3-15:

22 psig
(1.5 BAR) max

3-27, 6-30:

42 psig
(2.8 BAR) max

150 psig (10.0 BAR) max.

Flow Capacity

2.4 scfm (4.1 m3/hr)max.

Same as Air Consumption

Temperature Limits

-40°F to 158°F (-40°C to 70°C)

Low Temp (L) Option: -67°F to 158°F (-55°C to 70°C)

-40°F to 158°F (-40°C to 70°C)

Low Temp (L) Option: -67°F to 158°F (-55°C to 70°C)

Relative Humidity

75% average - 95% short time non-condensing

75% average - 95% short time non-condensing

Impedance

260 Ohms @ 70°F

260 Ohms @ 70°F

Loop Load

5.2 Volts @ 70°F

5.2 Volts @ 70°F

Linearity (Independent)

<± 0.5% of span

Hysteresis

<±0.3% of span

Deadband

<±0.1% of span

Repeatability

<±0.3% of span; ±0.15% of span typical

Mounting Orientation Effect

<±0.5% / 90 degree change

Air Supply Sensitivity

<.3% / 1.5 (0.10 BAR) psig change

<±0.6% / 25 (1.72 BAR) psig change

Vibration Effect

<±1% up to 10g
and 20-80 Hz

Temperature Effect

<±0.75% / 10°F (5.6°C) change

Housing

NEMA 4X (IP 65)

Port Sizes

Pneumatic:

1/4" NPT (P & N versions);
1/16" manifold mount (M version)
1/8" NPT Gauge Port (P version)

Electric:

1/2" NPT, M20-1.5 (ATEX)

Media

Clean, dry, oil-free, instrument air, filtered to 40 micron

Electrical Connections

Terminal block

Mounting

Direct (standard) or 2" pipe (optional)

Mounting





Housing: Chromate-treated aluminum with epoxy paint. NEMA 4X (IP65)

Elastomers: Buna-N

Trim: Stainless steel; brass; zinc-plated steel

Weight

P version=1.40 lbs (0.64 kg) N version=1.25 lbs (0.57 kg)
M version=1.20 lbs (0.54 kg)
