T590X Manifold Mount I/P Transducer


الكود :

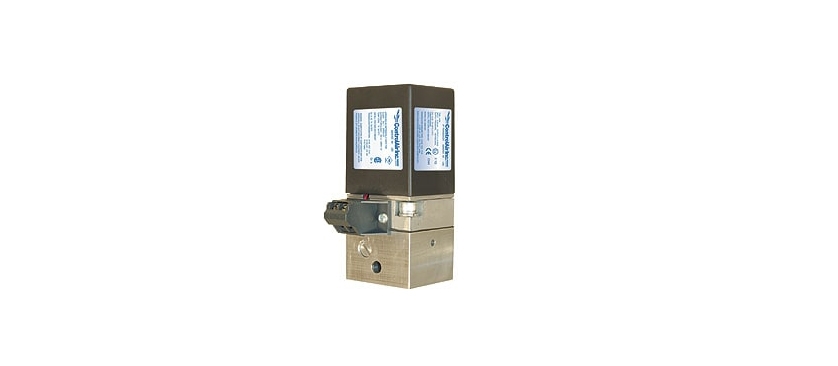

The Type-590X Manifold Mount I/P Transducer converts a variable electrical signal to a low flow proportional pneumatic output. Its compact size, light weight and immunity to shock and vibration make it ideal for use in process control valve positioner applications.
Conversion technology utilizing open loop control and a low mass magnet produces accurate pressure control at an economical cost. The Type-590X can mount in any position and is impervious to RFI/EMI interference.





Facebook Twitter Google Digg Reddit LinkedIn Pinterest StumbleUpon

تحميل

كتالوج 1


  • التفاصيل
  • المواصفات
  • الفيديو



M Connection (Manifold)

Input

4-20 mA

Output

3-15 psig 0.20-1.0 BAR
3-27 psig 0.20-1.8 BAR
6-30 psig 0.40-2.0 BAR

Air Consumption

2.00 scfh @ 20 psig supply
4.94 scfh @ 85 psig supply
8.36 scfh @ 150 psig supply

Supply Pressure

150 psig (10.0 BAR) max

Flow Capacity

Same as Air Consumption

Temperature Limit

-67°F to 185°F (-55°F to 85°C)

Relative Humidity

75% average - 95% short time non-condensing

Impedance

260 Ohms @ 70°F

Loop Load

5.2 volts @ 70°F

Linearity
(Independent)

<±0.5% of span

Hysteresis

<±0.3% of span

Deadband

<±0.1% of span

Repeatability

<±0.3% of span; <±0.15% of span typical

Mounting Orientation

<±0.5% / 90 degree change

Air Supply Sensitivity

<.6% per 25 psig change (metric)

Vibration Effect

<±1% up to 10g and 20-80 Hz

Temperature Effect

<±0.75% / 100F change (metric)

Housing

NEMA 1 (IP 20)

Port Sizes

3/16" NPT (M-Connection)

Media

Clean, dry, oil-free, instrument air,
filtered to 40 micron

Electrical
Connections

Terminal block

Mounting

Manifold

Materials

Housing: Chromate-treated aluminum, plastic
Elastomers: Buna-N
Trim: Stainless steel; brass; zinc-plated steel
Cover: Polypropylene

Weight

0.75 lbs (0.34 kg)
