T590X I/P Transducer


الكود :

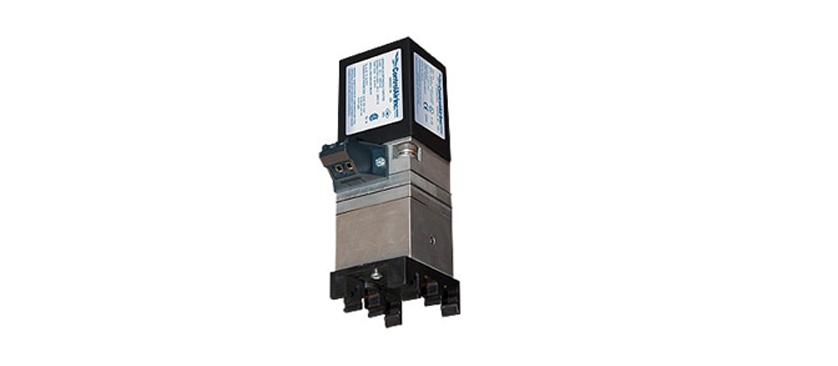

The Type-590X I/P (current to pressure) transducer converts a variable electrical signal to a linearly proportional pneumatic output. The small size, light weight and immunity to shock and vibration make it ideal for use in process control applications.
Conversion technology utilizing open loop control and a low mass magnet produces accurate pressure control at an economical cost. The Type-590X can mount in any position and is impervious to RFI/EMI interference.
Multiple choices for wiring and porting simplify installation and decrease the time required to do so. In addition to standard wall, panel or pipe mounting, optional DIN rail and manifold mounting kits are available.





Facebook Twitter Google Digg Reddit LinkedIn Pinterest StumbleUpon

تحميل

كتالوج 1


  • التفاصيل
  • المواصفات
  • الفيديو



P Connection (1/8" NPT)

Input

4-20 mA

Output

3-15 psig 0.20-1.0 BAR
3-27 psig 0.20-1.8 BAR
6-30 psig 0.40-2.0 BAR

Air Consumption

6 scfh (170 Nl/hr)

Supply Pressure

3-15: 22 psig (1.5 BAR) max.
3-27, 6-30: 42 psig (2.8 BAR) max.

Flow Capacity

2.4 scfm max.

Temperature Limit

-40°F to 158°F (-40°C to 70°C)
Low Temperature Option (L): -67°F to 158°F (-55°C to 70°C)

Relative Humidity

75% average - 95% short time non-condensing

Impedance

260 Ohms @ 70°F (21°C)

Loop Load

5.2 volts @ 70°F (26°C)

Linearity
(Independent)

<±0.5% of span

Hysteresis

<±0.3% of span

Deadband

<±0.1% of span

Repeatability

<±0.3% of span; <±0.15% of span typical

Mounting Orientation

<±0.5% / 90 degree change

Air Supply Sensitivity

<.3% per 1.5 psig change

Vibration Effect

<±1% up to 10g and 20-80 Hz

Temperature Effect

<±0.75% / 100°F change

Housing

NEMA 1 (IP 20)

Port Sizes

1/8" NPT (P-Connection)

Media

Clean, dry, oil-free, instrument air,
filtered to 40 micron

Electrical
Connections

Terminal block

Mounting

Pipe or DIN rail

Materials

Housing: Chromate-treated aluminum, plastic
Elastomers: Buna-N
Trim: Stainless steel; brass; zinc-plated steel
Cover: Polypropylene

Weight

0.75 lbs (0.34 kg)
