P290 Pneumatic-to-Current P/I Transducers


الكود :

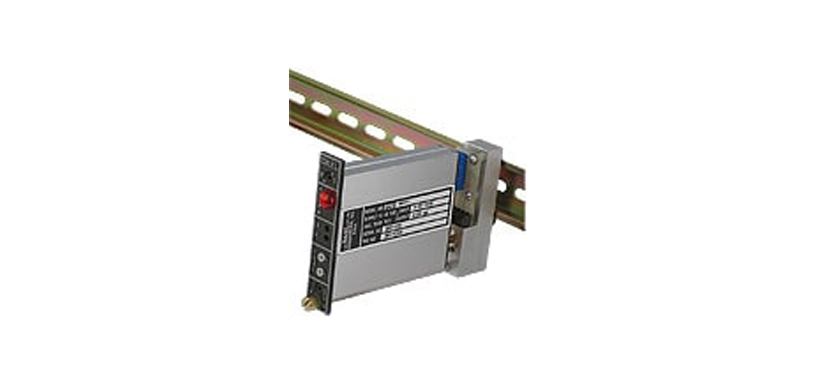

ControlAir's Dahl P290 P/I transducer represents outstanding value in pneumatic to current technology. All solid state circuitry converts standard 3-15, 3-27 or 6-30 psig instrument air into 4-20 or 10-50 mA outputs (4-20 mA only for FM and CSA approval) with uncompromising accuracy and durability. Custom pressure ranges are also available. P290 serves in high-density and panel-mounted applications and is available with high density DIN rail adapters, offering space saving flexibility with easy plug-in installation.




Facebook Twitter Google Digg Reddit LinkedIn Pinterest StumbleUpon



  • التفاصيل
  • المواصفات
  • الفيديو

Part Number

Description

P290M

P/I Module, 2-wire, 4-20

P290DC

Adapter for C type rail

P290DG

Adapter for G type rail



P/N

Standard Ranges

P/N

Custom Ranges (psig) Specify range



P11

3-15 psig (0.2-1 BAR)

P50

0-.72 to 0-6.0



P12

3-27 psig (0.2-1.8 BAR)

P51

0-6.0 to 0-18.0



P13

6-30 psig (0.4-2 BAR)

P52

0-18.0 to 0-30.0







P53

0-30.0 to 0.50.0

Options

P/N

Description







P31

CSA general
purpose certification





Inputs



Instrument Air:

3-15 psig (0.2-1 BAR)
3-27 psig (0.2-1.8 BAR)
6-30 psig (0.4-2 BAR)

Maximum Input

3 times full scale without recalibration
4 times full scale without failure

Outputs

2 wire: 4-20 mA with over-current limit , 10-50 mA optional

Allowable Loads
(24 VDC Power)

2-wire: 700 ƒ, standard. Voltage: 5k ƒ minimum

Accuracy

± 0.15% of span guaranteed; ±0.10% of span typical. Includes combined effects of linearity, hysteresis and
repeatability errors

Hysteresis

Negligible

Repeatability

±0.10% of span max; ±0.03% of span typical

Resolution

Infinite

Output Ripple

None

Protection

Reverse polarity, transient, over-current

Response Time

10 m Sec to 99% of step change

Temperature Stability

Span and Zero: ±0.007% of span per °F maximum deviation from 77°F calibration

Power Supply Stability

Less than 0.005% of span change in output per volt change at the input terminals

Power Supply

10 VDC min. to 42 VDC max. at input terminals

RFI/EMI Effect

Meets or exceeds SAMA PMC 33.1, 1978, 2-abc: 0.1% of span at 10 volts/meter

Operating Temperature Range

-40°F to 167°F (-40°C to 75°C)

Storage Temperature Range

-60°F to 185°F (-51°C to 85°C)

Calibration Adjustments

Non-interactive, multiturn span and zero potentiometers with approximately ±10% of span adjustment range

Loss-of-air Indication

LED illuminates when input pressure falls below 60% of the live-zero input or, on optional alarm units, LED illuminates during alarm condition

Mounting Position Effect

None

In-process Output Monitoring

Voltage: Voltmeter with greater than 10K ƒ input resistance

Connections

Signal Air: 1/8" NPT female
Electrical Wiring: Miniature terminal block accepts solid or stranded wire up to 14 AWG
