P200 Pneumatic-to-Current P/I Transducers


الكود :

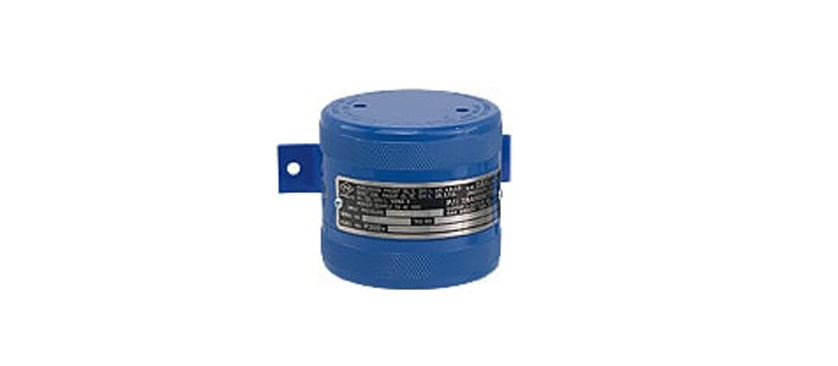

ControlAir's Dahl P200 P/I transducer represents outstanding value in pneumatic to current technology. All solid state circuitry converts standard 3-15, 3-27 or 6-30 psig instrument air into 4-20 or 10-50 mA outputs (4-20 mA only for FM and CSA approval) with uncompromising accuracy and durability. Custom pressure ranges are also available. The P200's explosion-proof housing allows it to stand up to the most hazardous and demanding applications. The P200 is FM approved and CSA certified as NEMA 4 (Enc. 4) for all locations and explosion-proof for Class I, Div. 1, Groups A, B, C, D; dust ignition-proof for Class II, Div. 1, Groups E, F, G; and suitable for Class III, Div. 1 locations.




Facebook Twitter Google Digg Reddit LinkedIn Pinterest StumbleUpon

تحميل

كتالوج 1


  • التفاصيل
  • المواصفات
  • الفيديو

Part Number

Description

P200

P/I Device, 2-wire, FM explosion-proof, 4-20 mA standard, 10-50 mA optional



P/N

Standard Input Ranges

P/N

Optional - Custom Input Ranges (specify range)



P11

3-15 psig (0.2 - 1.0 BAR)

P50

0-.72 to 0-6.0 psig (0.08 to 0.4 BAR)



P12

3-27 psig (0.2 - 1.8 BAR)

P51

0-6.0 to 0-18.0 psig (0.4 to 1.2 BAR)



P13

6-30 psig (0.4 - 2.0 BAR)

P52

0-18.0 to 0-30.0 psig (1.2 to 2 BAR)



Options

P/N

Description



P21

Lightening Surge Protector



P23

Extra 316 SS Tag



P28

CSA Intrinsically Safe (4-20 mA only)



P29

CSA Explosion-proof (4-20 mA only)



P45

10-50 mA output

 Part Number = Model + Input Range + Options
 Examples: P200 + P11 + P21
 P290 + P50 (0-5)
Accessories
P200 - Pipe Mounting Kit - 2" bracket P/N: 748-542-010


Inputs



Instrument Air:

3-15 psig (20-100 kPa)
3-27 psig (20-180 kPa)
6-30 psig (40-200 kPa)

Maximum Input

3 times full scale without recalibration
4 times full scale without failure

Outputs

2 wire: 4-20 mA and 10-50 mA with over-current limit.

Allowable Loads
(24 VDC Power)

700 Ω

Accuracy

± 0.15% of span guaranteed; ±0.10% of span typical. Includes combined effects of linearity, hysteresis and
repeatability errors

Hysteresis

Negligible

Repeatability

±0.10% of span max; ±0.03% of span typical

Resolution

Infinite

Output Ripple

None

Protection

N/A

Response Time

10 m Sec to 99% of step change

Temperature Stability

Span and Zero: ±0.007% of span per °F maximum deviation from 77°F calibration

Power Supply Stability

Less than 0.005% of span change in output per volt change at the input terminals

Power Supply

10 VDC min. to 42 VDC max. at input terminals. Can indefinitely withstand up to 100 VDC without failure

RFI/EMI Effect

Meets or exceeds SAMA PMC 33.1, 1978, 2-abc: 0.1% of span at 10 volts/meter

Operating Temperature Range

-40°F to 161°F (-40°C to 72°C)

Storage Temperature Range

-60°F to 161°F (-51°C to 72°C)

Calibration Adjustments

Multiturn span and zero potentiometers with approximately ±20% of span adjustment range

Loss-of-air Indication

N/A

Mounting Position Effect

None

In-process Output Monitoring

Current: For accurate reading, ammeter must have less than 20 ƒ input resistance on 4-20 mA output (0.40 VDC drop)

Connections

Signal Air: 1/4" NPT female
Electrical Wiring: 1/2" NPT female to barrier terminal strip
