Mechanically Actuated Valves


الكود :

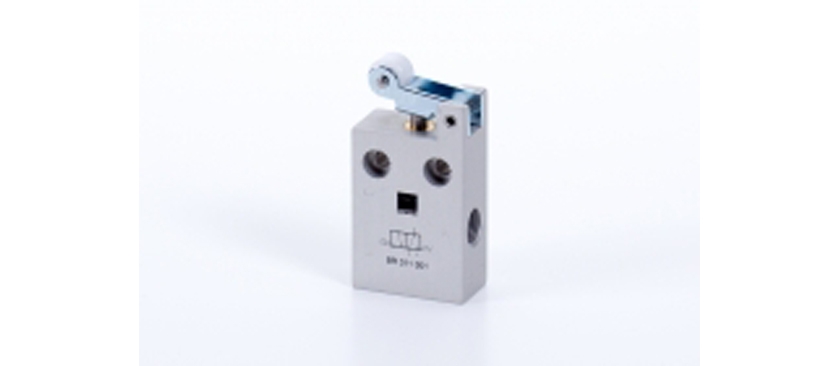

Roller lever valve | monostable | NC | mechanical spring return | push-in fitting




Facebook Twitter Google Digg Reddit LinkedIn Pinterest StumbleUpon



  • التفاصيل
  • المواصفات
  • الفيديو

Specifications

Type number

BR 311 243

Short description

3/2-roller lever valve, ports 1, 2 on the side, 4 mm p.i.f.

Port size

Ø 4

Air flow

115 l/min

Operating pressure

-0,9...10 bar

Actuating force

9 N

Function

spring return | NC

Port size / port position

ports on the side | 1, 2

اطلب الان
