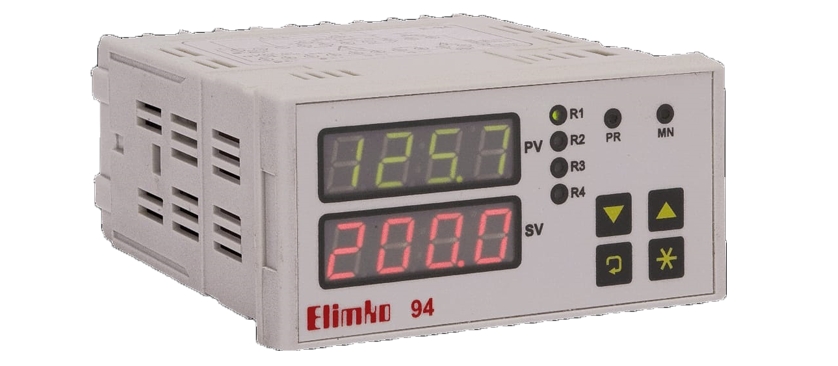

E-94


الكود :

E-94 Series controllers are designed using new generation microcontrollers
for on/off and PID control. The unit has dimensions of
96x48 mm, conforming IEC 668.
E-94 Series have a 2x4 digits LED display range between –1999
and +9999, configurable universal inputs (T/C, R/T, mV, mA) with
16 bit resolution, low calibration drifts with environmental
conditions.
E-94 Series controllers have easy programming facilities to provide
on/off and PID forms and are used in every field of industry for
measurement and control of temperature, pressure, level, current,
voltage, resistance and other process parameters in industries
such as iron & steel, cement, plastic, chemistry, metallurgy,
petrochemical plants, refineries, ceramic, glass and others.




Facebook Twitter Google Digg Reddit LinkedIn Pinterest StumbleUpon

تحميل

كتالوج 1


  • التفاصيل
  • المواصفات
  • الفيديو

Model : E-94-3-1-0-0
 Dimension:48*96 mm (Horizontal)
Power supply:220 VAC
Signal inputs :T/C ,  Pt100 , mA , m V
Outputs : 3  Relaly programable
Output : 4-20 mA (Control or Retransmission)
Sensors supply :Internaly  24 vdc (2-Wire)

Accuracy Class 0.5
Display Resolution 1 / 9999
Display 2x4 Digit LED (7mm)
A/D Conversion 16 Bit
S/A Conversion 12 Bit
Reading Speed 2 readings/second
Input Resistance T/C, mV: ≥ 1MΩ
mA : ≤ 51 Ω
Noise Suppression 120 dB 50 Hz
Operating Temperature -10 ÷ 55 °C
Temperature Comp. 0-50 C
Operating Voltage 85-265 V AC,
85-375 V DC,
20-60 V AC,
20-85 V DC
Power Consumption Max. 10 VA
Relay Output SPST-NO 250 V AC 5 amp
Input Signal T/C, R/T, mA, mV
Sensors Thermocouple
Resistance Thermometre
Others= Standard and nonstandart
transmitters and
converters
Memory EEPROM max. 105 writing
Weight 220 gr
