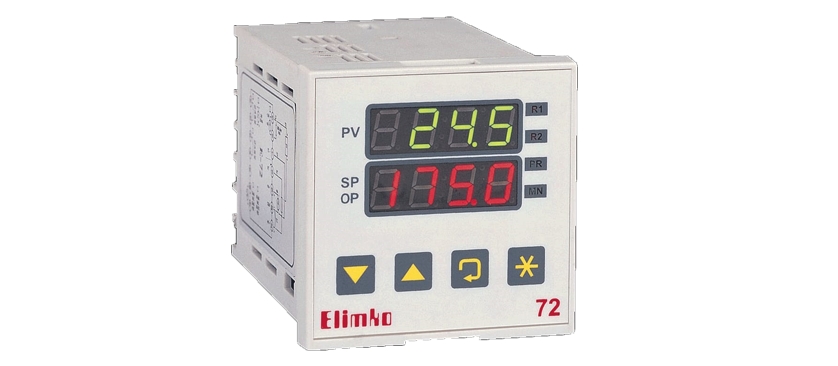

E-72


الكود :

E-72 Series controllers are designed using new generation
micro-controllers for on/off and PID control. Unit dimensions
are 72x72 mm, conforming to IEC 668.
The E-72 Series has a 2x4 digits LED display range from –1999
to +9999 and configurable universal inputs (T/C, R/T, mV, mA)
with 16 bit resolution, low calibration drifts with
environmental conditions.




Facebook Twitter Google Digg Reddit LinkedIn Pinterest StumbleUpon

تحميل

كتالوج 1


  • التفاصيل
  • المواصفات
  • الفيديو

Accuracy Class 0.5
Display Resolution 1/9999
Display 2x4 Digit LED (10 mm)
A/D Conversion 16 bit
D/A Conversion 12 bit
Reading Speed 2 Readings / second
Input Resistance T/C, mV: ≥ 1 MΩ
mA, : ≤ 51 Ω
Noise Suppression 120 dB 50 Hz
Operating Temperature -10 ÷ 55°C
Temperature Comp. 0–50°C
Operating Voltage 85–265 V AC
85–375 V DC
20–60 V AC
20–85 V DC
Power Consumption Max. 7 VA
Relay Output SPST-NO 250 V AC 5A
Input Signal T/C, R/T, mA, mV
Sensors Thermocouple
Resistance Thermometer
Others = Standard and
non-standard transmitters
and converters
Memory EEPROM max. 105 writing
Weight 232 gr
