E-200


الكود :

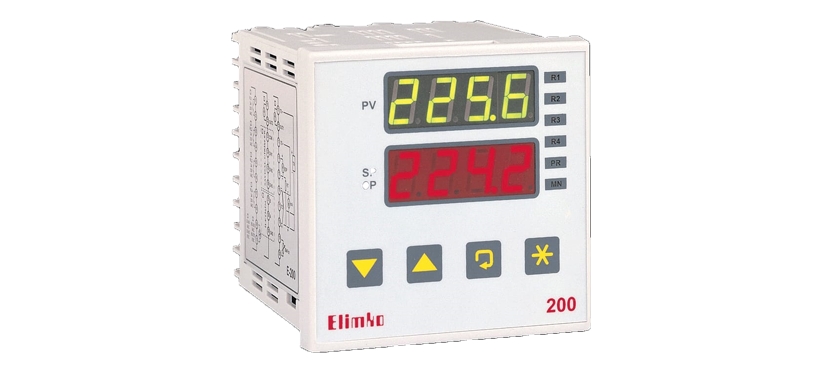

E-200 Series universal-advanced controllers are designed using
new generation micro-controllers. Unit dimensions are
96x96mm, conforming to IEC 668. E-200 Series has a 2x4 digit
LED display range from –1999 to 9999 and configurable
universal inputs (R/T, T/C, mV, mA) with 16 bit resolution and
ultra low calibration drifts with environmental conditions.




Facebook Twitter Google Digg Reddit LinkedIn Pinterest StumbleUpon

تحميل

كتالوج 1


  • التفاصيل
  • المواصفات
  • الفيديو

Accuracy Class 0.5
Display Resolution 1/9999
Display 2x4 Digit LED (14 mm)
A/D Conversion 16 bit
D/A Conversion 12 bit
Reading Speed 10 readings / second
Input Resistance T/C, mV: ≥ 1 MΩ
mA, : ≤ 51 Ω
Noise Suppression 120 dB 50 Hz
Operating Temperature -10 ÷ 55°C
Temperature Comp. 0–50°C
Operating Voltage 85–265 V AC
85–375 V DC
20–60 V AC
20–85 V DC
Power Consumption Max. 10 VA
Relay Output SPST-NO 250 V AC 5A
Input Signal T/C, R/T, mA, mV
Sensors Thermocouple
Resistance Thermometer
Others = Standard and
non-standard transmitters
and converters
Transmitter Power Supply 24 V DC 25 mA
Memory EEPROM max. 105 writing
Weight 430 gr
