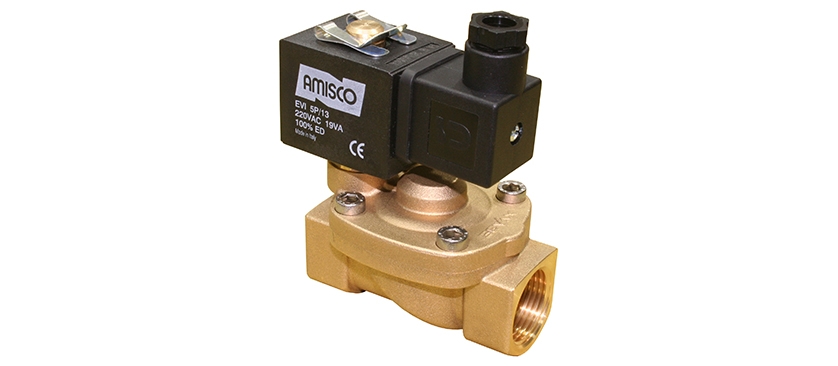

سولونويد فالف مياه وهواء -1/2 بوصة 2/2 NO
الكود : 1901-ABND016-120
| REFERANCE: | 1901-ABND016-120-220AC |
| MAIN SERIES: | General Purpose |
| FUNCTION: | 2/2 Ways |
| POSITION: | Normally Open |
| OPERATION TYPE: | Pilot Operating |
| SEAT SEAL MATERIAL: | NBR Diaphragm / NBR Seal |
| PORT SIZE: | ½” |
| ORIFICE: | 12mm |
| Kv: | 65.00 l/min |
| Pmin-Pmax (bar): | 0,5-16 bar |
| Tmin / Tmax (°C): | -10 °C / 80 °C |
| WEIGHT: | 0.640 Kg |
| COIL VOLTAGE - TOLERANCE: | 12,24,220,230V AC/DC |
